Description

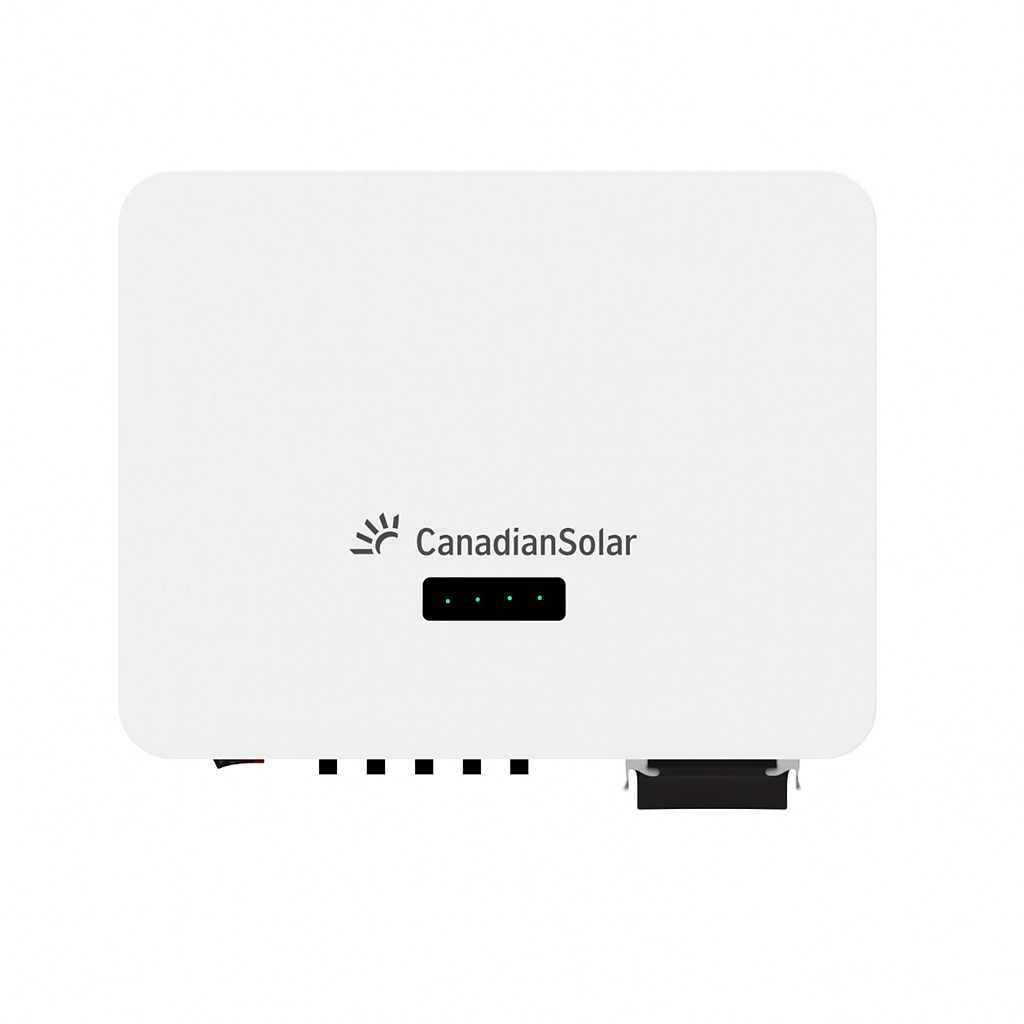

The Canadian Solar High-Efficiency Grid-Tied Inverter is engineered for advanced solar energy systems, offering powerful performance, safety, and long-term reliability. With a multiplex MPPT design, it delivers optimal energy harvesting even in complex installation conditions. Its 16A input current supports the latest high-power PV modules, while the integrated DC switches. This inverter includes smart string monitoring, optional anti-PID and AFCI protection, and intelligent fan cooling for stable operation in all environments. Built with IP66 protection, it’s designed to perform in harsh outdoor conditions and provides utility-interactive controls like active power derating, reactive power control, and over-frequency derating for grid stability.
Key Features:
- Multiplex MPPT design for higher efficiency in complex applications
- 16A input supports high-power solar modules
- Integrated DC switches for improved safety
- Smart string monitoring and optional anti-PID function
- Supports aluminum cable and optional AFCI protection
- Intelligent fan cooling system for optimal temperature control
- SPD Type II protection for both DC and AC circuits
- IP66-rated enclosure for harsh environments
- Utility interactive controls: active power derating, reactive power control, and over-frequency derating
| Feature | CSI-50K-T4001A-E |
| INPUT (DC) | |
| Max. Input Voltage | 1100 VDC |
| Start-up DC Input Voltage | 195 VDC |
| Rated Input Voltage | 600 VDC |
| MPPT Voltage Range | 200 – 1000 VDC |
| Max. String Input No. | 8 |
| MPPT No. | 4 |
| Max. Input Current | 4 x 32 A |
| Max. DC short-circuit current | 4 x 40 A |
| OUTPUT (AC) | |
| Rated AC Output Power | 50 kW |
| Max. AC Output Power (Apparent) | 50 kVA |
| Rated Output Voltage | 380 / 400 VAC |
| Grid Connection Type | 3 L / N / PE |
| Max Output Current | 76 A |
| Rated Output Frequency | 50 / 60 Hz |
| THDI | < 3 % |
| Power Factor | 0.8 |
| Zero Export Solution | Support |
| EFFICIENCY | |
| Max. Efficiency | 98.7 % |
| EU Efficiency | 98.3 % |
| ENVIRONMENT | |
| Protection Degree | IP66 |
| Cooling | Intelligent Air Cooling |
| Operating Temperature Range | -30 to +60 °C |
| Operating Humidity | 0 – 100% Non-condensing |
| Operating Altitude | 4000 m (>3000 m derating) |
| PROTECTION | |
| DC Switch | Yes |
| Anti-Islanding Protection | Yes |
| DC Reverse-Polarity Protection | Yes |
| DC Insulation Resistance Detection | Yes |
| Residual Current Monitoring | Yes |
| AC Output Over Current Protection | Yes |
| AC Short Circuit Protection | Yes |
| Grid Monitoring | Yes |
| AFCI | Optional |
| O recovery overvoltage Class | Optional |
| DISPLAY AND COMMUNICATION | |
| Display | LED Indicators & APP |
| Communication | WiFi |
| MECHANICAL DATA | |
| Dimensions (W x H x D) | 720 x 555 x 288 mm |
| Weight | 50 kg |
| DC Connection Type | OT Terminals |
| AC Connection Type | OT Terminals |
