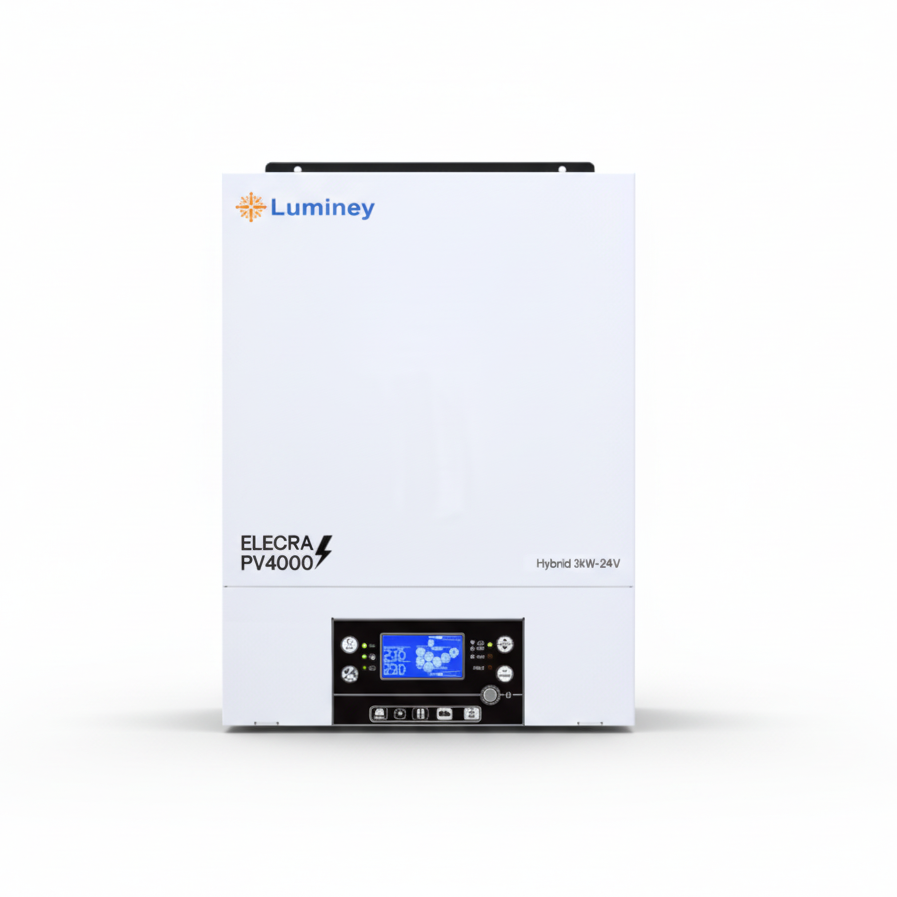

Luminey Electra 3kW Hybrid Solar Inverter with PV4000 | 24V | Pure Sine Wave
₨72,000.00
Luminey 3KW solar inverter price in Pakistan – Available at The Xpert Services, Lahore.
- Model: Luminey Electra 3kW Hybrid Solar Inverter with PV4000 | 24V | Pure Sine Wave
- Hybrid / On-Grid / Off-Grid options available
- Built-in MPPT solar charge controller
- Wi-Fi monitoring & remote control support
- Warranty & technical support included
⚠️ Price Notice: Prices are updated on a daily basis due to market fluctuations. Please confirm the final price before placing your order. Call or WhatsApp us for the latest price.
Description
Power your home or office efficiently with the Luminey Elecra 3KW PV4000 Hybrid Inverter ( 24V Single Phase). Designed with advanced MPPT solar charging technology, this inverter delivers pure sine wave output, fast transfer time, and up to 93% efficiency. Ideal for reliable backup and solar energy conversion, it supports both AC and solar charging with smart communication interfaces for monitoring and control.
Key Features:
- 3000VA / 3000W hybrid inverter with 24VDC battery system
- MPPT solar charger supports up to 4000W PV input (120–450VDC)
- High efficiency: 90%–93% with pure sine wave output
- Fast 15–20ms transfer time for uninterrupted power supply
- Dual output design with USB/RS232/RS485/WiFi/Dry-contact connectivity
- Compact size: 115 × 300 × 400 mm, lightweight 9 kg design
- Operating temperature: -10°C to 50°C, humidity 5%–95% (non-condensing)
| Category | Specification |
|---|---|
| Model | Elecra PV4000 |
| RATED POWER | 6000VA |
| INPUT | |
| Voltage | 230VAC ± 10% |
| Selectable Voltage Range | 170-280VAC (For Personal Computers) / 90-280VAC (For Home Appliances) |
| Frequency Range | 50Hz / 60Hz (Auto sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 230VAC |
| Surge Power | 3000VA / 3000W |
| Efficiency (Peak) | 90% ~ 93% |
| Transfer Time | 15 ms (For Personal Computers) / 20 ms (For Home Appliances) |
| Waveform | Pure Sine Wave |
| Dual Outputs | Yes |
| BATTERY | |
| Battery Voltage | 24VDC |
| Floating Charge Voltage | 27VDC |
| Overcharge Protection | 33VDC |
| SOLAR CHARGER & AC CHARGER | |
| Solar Charger Type | MPPT |
| Maximum PV Array Power | 4000W |
| MPP Range @ Operating Voltage | 120 ~ 450VDC |
| Maximum PV Array Open Circuit Voltage | 500VDC |
| Maximum Solar Charge Current | 100A |
| Maximum AC Charge Current | 100A |
| Maximum Charge Current | 100A |
| PHYSICAL | |
| Dimension (D × W × H) | 115 × 300 × 400 mm |
| Net Weight | 9 kg |
| Communication Interface | USB / RS232 / RS485 / WiFi / Dry-contact |
| OPERATING ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
