Description

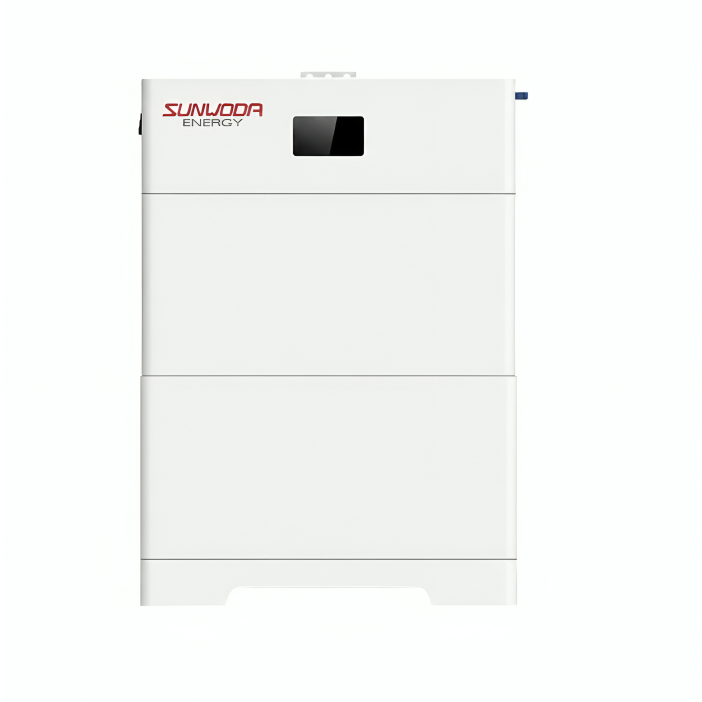

The Luminey SunESS 10H Smart Stacked Energy Storage System is a powerful 10kWh high-voltage lithium battery designed for solar backup, hybrid inverters, and whole-home energy management. Engineered for efficiency and long-term reliability, this system delivers excellent performance with a roundtrip efficiency of over 95%, advanced protection features, and intelligent communication interfaces including built-in WiFi.
Key Features
-
10kWh high-voltage energy storage for home or commercial use
-
Usable energy: 9kWh (90% DOD)
-
>95% roundtrip efficiency for optimized power usage
-
5kW rated output, peak 7kW for 10 seconds
-
Intelligent communication: CAN 2.0, RS485, WiFi, LAN
-
IP55 enclosure for indoor/outdoor installation
-
Quick plug-and-play connection for fast setup
-
Advanced monitoring display: SOC, battery status, alarms, WiFi status, heater status
-
Comprehensive protection system including overvoltage, overcurrent, short circuit, temperature, and reverse polarity
-
Expandable up to 60kWh (supports 3 units in parallel)
-
Natural convection cooling for silent operation
| Specification | Value |
|---|---|
| Model | SunESS 10H |
| Nominal Energy | 10 kWh |
| Usable Energy (90% DOD) | 9 kWh |
| Rated Voltage | 409.6 V |
| Charge/Discharge Cut-Off Voltage | 350 V ~ 450 V |
| Roundtrip Efficiency | >95% |
| Rated Charge/Discharge Power | 5 kW |
| Max Charge/Discharge Power | 7 kW @ 10s |
| Communication Interface | CAN 2.0, RS485, WiFi, LAN |
| DC Disconnect | Circuit Breaker, 50 A, 410 V |
| Terminals | Quick plug and unplug |
| User Interface | Display: Battery status, SOC, alarms, WiFi status, heater status |
| Protection Features | Overvoltage, undervoltage, overcurrent, short circuit, high/low temperature, reverse polarity |
| Scalability | Max 3 in parallel (up to 60 kWh) |
| Installation Location | Outdoor or indoor |
| Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
| Recommended Operating Temp. | 59°F to 86°F (15°C to 30°C) |
| Storage Temperature | -22°F to 140°F (-30°C to 60°C) |
| Humidity | 10% to 95% (non-condensing) |
| Dimensions (W × H × D) | 633 × 912 × 189 mm |
| Weight | 115 kg |
| Enclosure Rating | IP55 |
| Altitude | <2000 m |
| Cooling Method | Natural convection |
| Warranty | 5 Years |
