Description

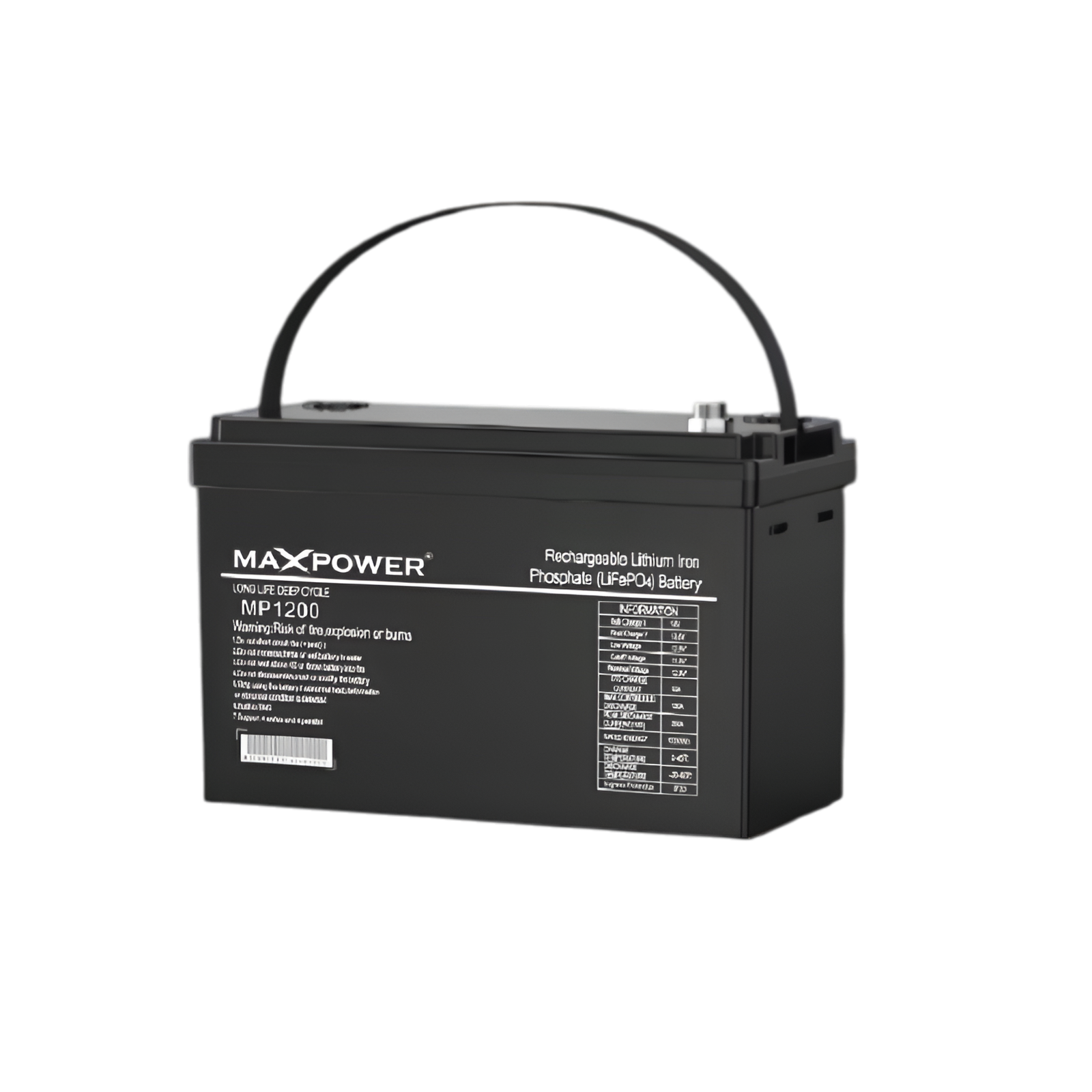

The MAXPOWER MP 1200 Lithium Ion Battery is a high-performance LiFePO4 (Lithium Iron Phosphate) energy storage solution designed for solar systems, backup power, and off-grid applications. With a 12.8V 100Ah capacity (1.28kWh) and 100A discharge current, this battery delivers reliable, long-lasting power with superior safety and efficiency. Built using advanced lithium technology, the MP 1200 offers up to 6000 life cycles, ensuring long-term durability and cost-effectiveness. Its compact design, intelligent communication via RS485, and scalable configuration make it ideal for both residential and commercial energy storage systems.
Key Features:
High Capacity Power – 12.8V, 100Ah (1.28kWh) for reliable energy storage
100A Discharge Current – Supports heavy load appliances and systems
Advanced LiFePO4 Technology – Safer, longer lifespan, and stable performance
Long Life Cycle – Up to 6000 cycles @ 80% DoD for extended use
Scalable System – Supports up to 4 batteries in parallel and series
Smart Communication – Integrated RS485 for monitoring and control
Wide Temperature Range – Operates efficiently from -20°C to 60°C
Compact & Lightweight – Easy installation with durable design
| Category | Specification |
|---|---|
| Model | MP 1200 Battery |
| Performance | 12.8 V, 100 Ah, 1.28 kWh |
| Nominal Voltage | 12.8 V |
| Bulk Charge Voltage | 14 V |
| Float Charge Voltage | 13.8 V |
| Low Voltage | 12.8 V |
| Cutoff Voltage | 11.6 V |
| Charge Current | 50 A |
| Discharge Current | 100 A |
| Short Circuit Current | 1000 A |
| Communication | RS485 |
| Dimensions (W × D × H) | 340 × 185 × 215 mm |
| Weight | 10.35 kg |
| Working Temperature | -20°C to 60°C |
| Operating / Storage Humidity | <95% RH |
| Max Operating Altitude | <2000 m |
| IP Rating | IP20 |
| Cell Technology | LiFePO4 (Lithium Iron Phosphate) |
| Cycle Life | 6000 Cycles @ 80% DoD / 25°C / 0.5C, 60% EOL |
| Scalability (Series) | Max 4 Batteries |
| Scalability (Parallel) | Max 4 Batteries |
| Certificates | CE, UN38.3 |
| Standard Compliance | Available upon request |
| Product Ordering Part | MP 1200 |
