Description

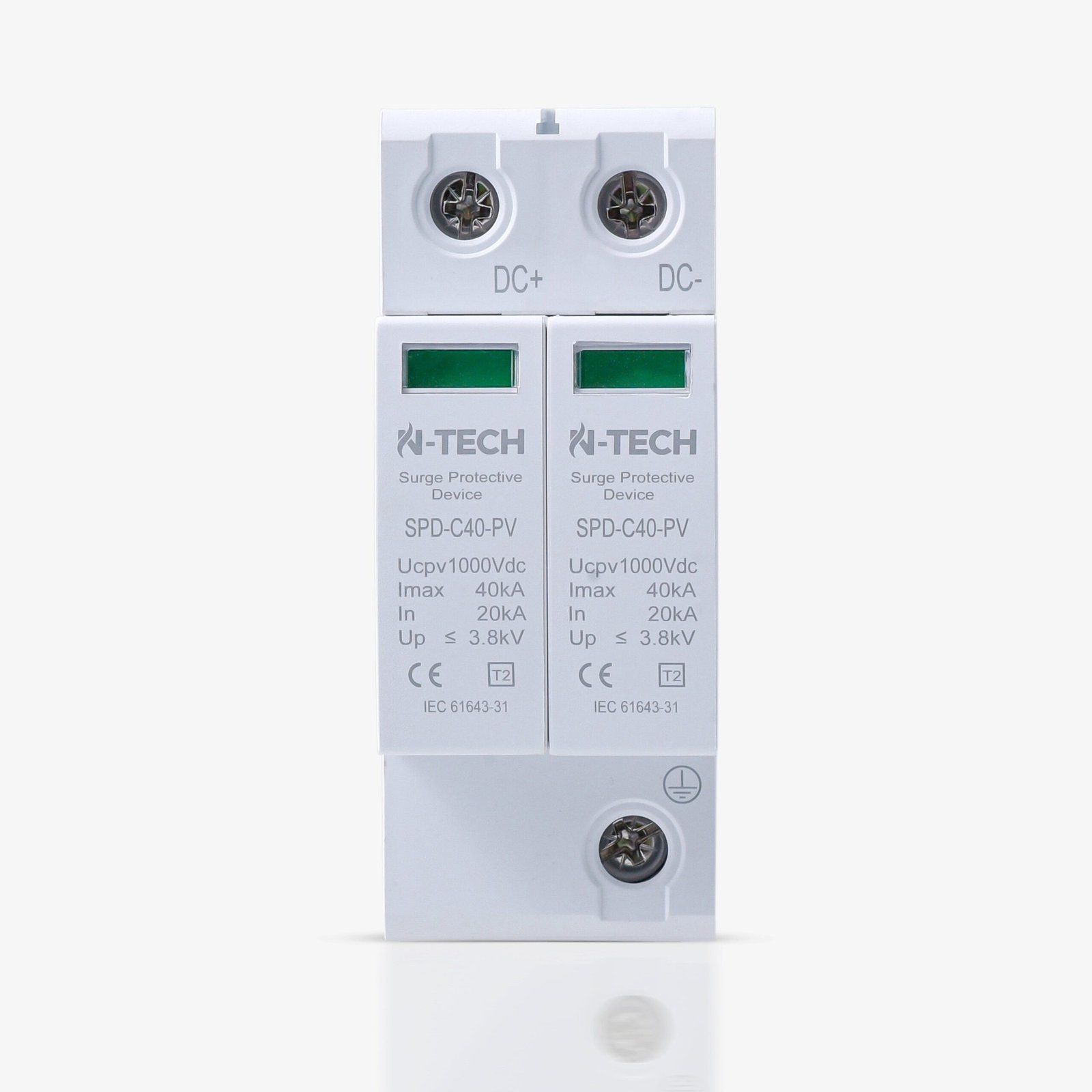

The N-Tech SPD-C40-PV is a surge protection device designed for photovoltaic (PV) systems and other DC power applications. It provides reliable protection against transient overvoltages caused by lightning strikes and switching operations, ensuring the safety and longevity of connected equipment.
Key Specifications:
- Type: DC Surge Protection Device (SPD)
- Poles: 2-Pole (DC+ / DC–)
- Maximum Continuous Operating Voltage (Ucpv): 1000 V DC
- Maximum Discharge Current (Imax): 40 kA
- Nominal Discharge Current (In): 20 kA
- Voltage Protection Level (Up): ≤ 3.8 kV
- Standard Compliance: IEC 61643-31
- Protection Class: Type 2 (T2)
- Application: Solar PV systems, DC distribution systems
Features:
- High discharge current capability (40 kA)
- Compact design for easy DIN rail installation
- Clear indicator window for status monitoring
- Reliable protection for sensitive DC equipment
- Designed for long-term stability and safety
