Description

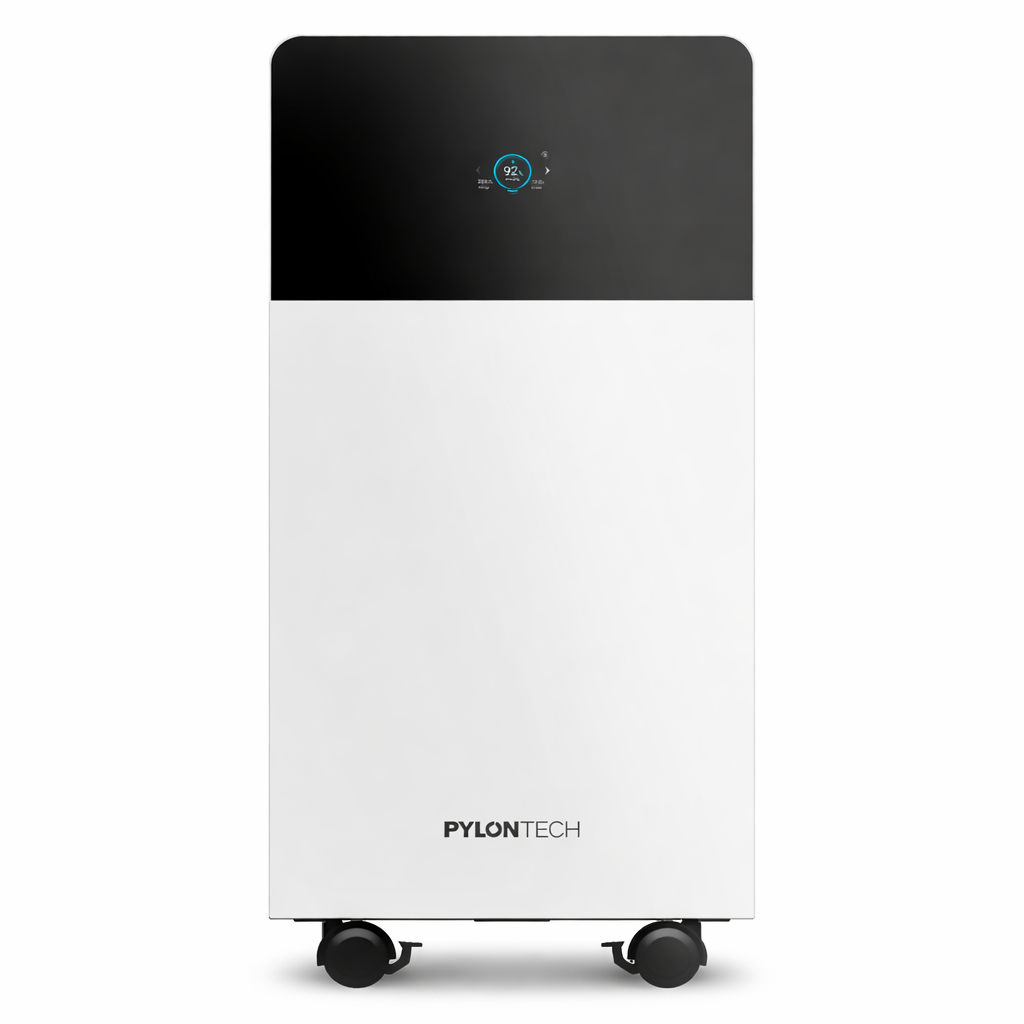

The Pylontech Fidus Plus 16kWh is a high-performance lithium battery designed for residential, commercial, and industrial solar energy storage systems. With IP65 protection, built-in WiFi, and an ultra-long 8000+ cycle life, this battery delivers reliable, safe, and scalable power for on-grid and off-grid applications. Built with advanced LiFePO₄ technology, the Fidus Plus ensures 100% depth of discharge, high efficiency, and long service life, even in harsh environmental conditions.
Key Features
- High Capacity 16kWh Energy Storage: Delivers powerful and consistent backup energy for homes and businesses.
- 8000+ Life Cycles: Long-term durability with up to 10 years design life at 25°C.
- IP65 Rated: Fully protected against dust and water — ideal for indoor & outdoor installations.
- Built-in WiFi & Bluetooth: Smart monitoring with display screen for real-time battery status
- Flexible System Expansion: Supports up to 20 batteries per group and 6 parallel strings.
- Wide Operating Temperature Range: Stable performance from -20°C to 55°C.
| Parameter | Specification |
|---|---|
| Nominal Voltage (VDC) | 51.2V |
| Nominal Capacity (Wh) | 16,076 Wh |
| Usable Capacity (Wh) | 16,076 Wh |
| Depth of Discharge (%) | 100% |
| Dimensions (mm) | 435 (W) × 240 (D) × 900 (H) |
| Weight (Kg) | 130 kg |
| Discharge Voltage (VDC) | 40 ~ 56.8 V |
| Charge Voltage (VDC) | 56 ~ 56.8 V |
| Maximum Continuous Charge / Discharge Current (A) | 200A / 200A |
| Peak Charge / Discharge Current (A) | 300A @ 15s |
| Communication | CAN, RS485 |
| Max Batteries per Group | 20 |
| Max Parallel Strings | 6 |
| Working Temperature (Charging) | 0 ~ 55 °C |
| Working Temperature (Discharging) | -20 ~ 55 °C |
| Storage Temperature (°C) | -20 ~ 60 °C |
| Cooling Type | Natural Cooling |
| Protective Class | Class I |
| IP Rating | IP65 |
| Anti-Corrosion Rating | C5-M |
| Humidity Range (RH, Non-condensing) | 5% ~ 95% |
| Maximum Altitude | ≤ 4000 m |
| Certifications | IEC62619, IEC63056, UN38.3, EMC / CE |
| Design Life (25°C) | 10 Years |
| Cycle Life (25°C) | 8000 Cycles |
