Description

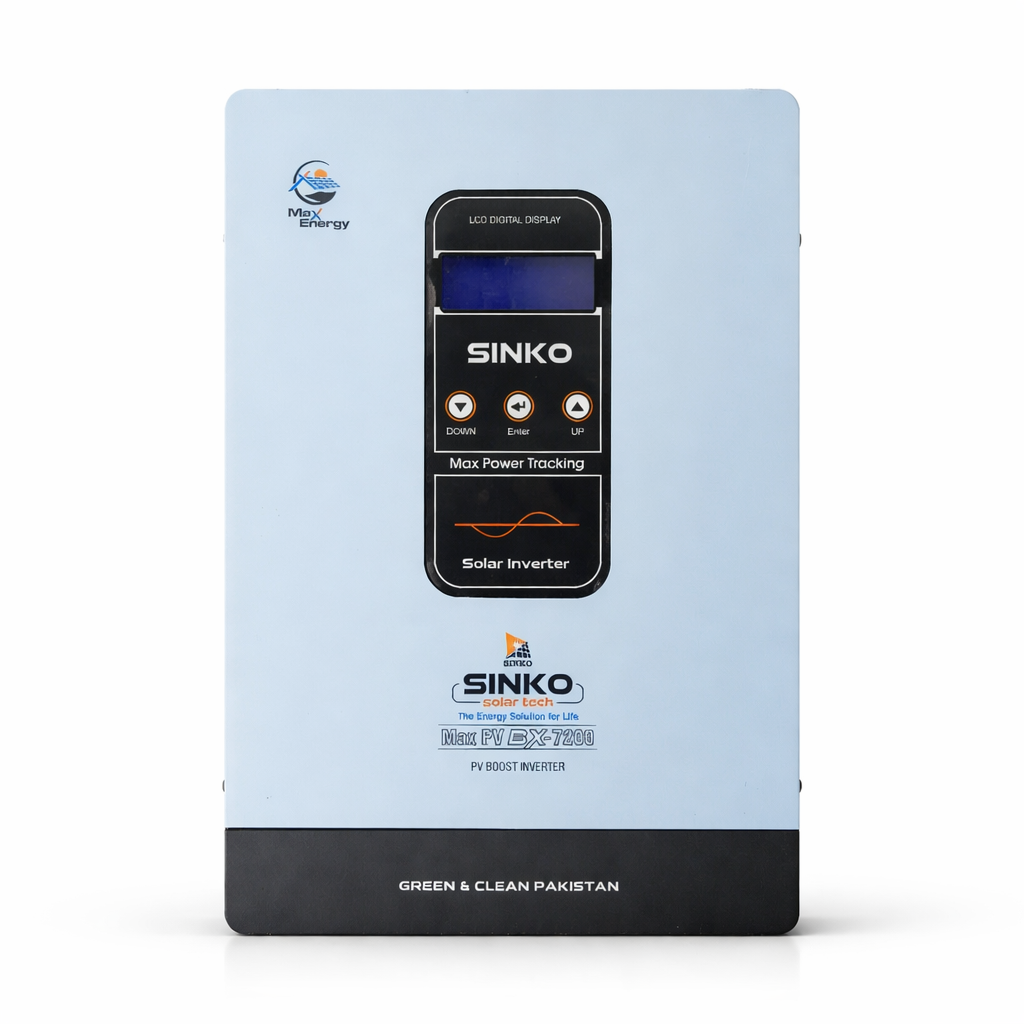

The SINKO 5.2KW BX PV7200 Solar Inverter is a powerful and efficient solution designed for reliable solar energy conversion in residential and small commercial setups. Featuring pure sine wave output, advanced power sharing & shifting modes, and strong protection systems, this inverter ensures smooth and stable performance for all your electrical appliances. With support for up to 7200W PV input, dual solar array configuration, and intelligent safety features, the BX PV7200 is built to maximize solar utilization while protecting your system from electrical faults.
Key Features:
5.2KW High Output Power – Ideal for homes and small businesses
Pure Sine Wave Technology – Ensures safe operation for sensitive electronics
7200W PV Input Support – Maximizes solar energy generation
Dual PV Array Input – Supports 2 solar panel strings for better efficiency
Wide PV Voltage Range – Operates between 50V to 400V DC
Smart Power Modes – Power sharing and shifting for optimized energy usage
Advanced Protection System – Protection against overload, overheating, and short circuits
Auto Cooling Fan – Maintains optimal temperature for longer lifespan
| Category | Parameter | Specification |
| Model Details | Model Name | Max PV BX-7200 |
| Type | Pure Sine Wave (Power Sharing + Shifting Mode) | |
| PV Input | Min. PV Voltage | 50 Vdc |
| Max. PV Voltage | 400 Vdc | |
| Max. Current (Crunt) | 21.5 Amp | |
| Max. PV Power | 7200W | |
| Configuration | Max PV Input Array x 2 | |
| AC Input | Min. Input Voltage | 180 Vac |
| Max. Input Voltage | 250 Vac | |
| Max. Current (Crunt) | 20 Amp | |
| AC Output | Output Voltage | 225 Vac |
| Max. Power | 5.2 KW | |
| Max. Current (Crunt) | 21.5 Amp | |
| Protection | Features | Over Load, Over Heat (Auto Fan), Short Circuit, AC Input Over/Under Protection |
| Warnings | Low AC Output, Low PV Output |
