Description

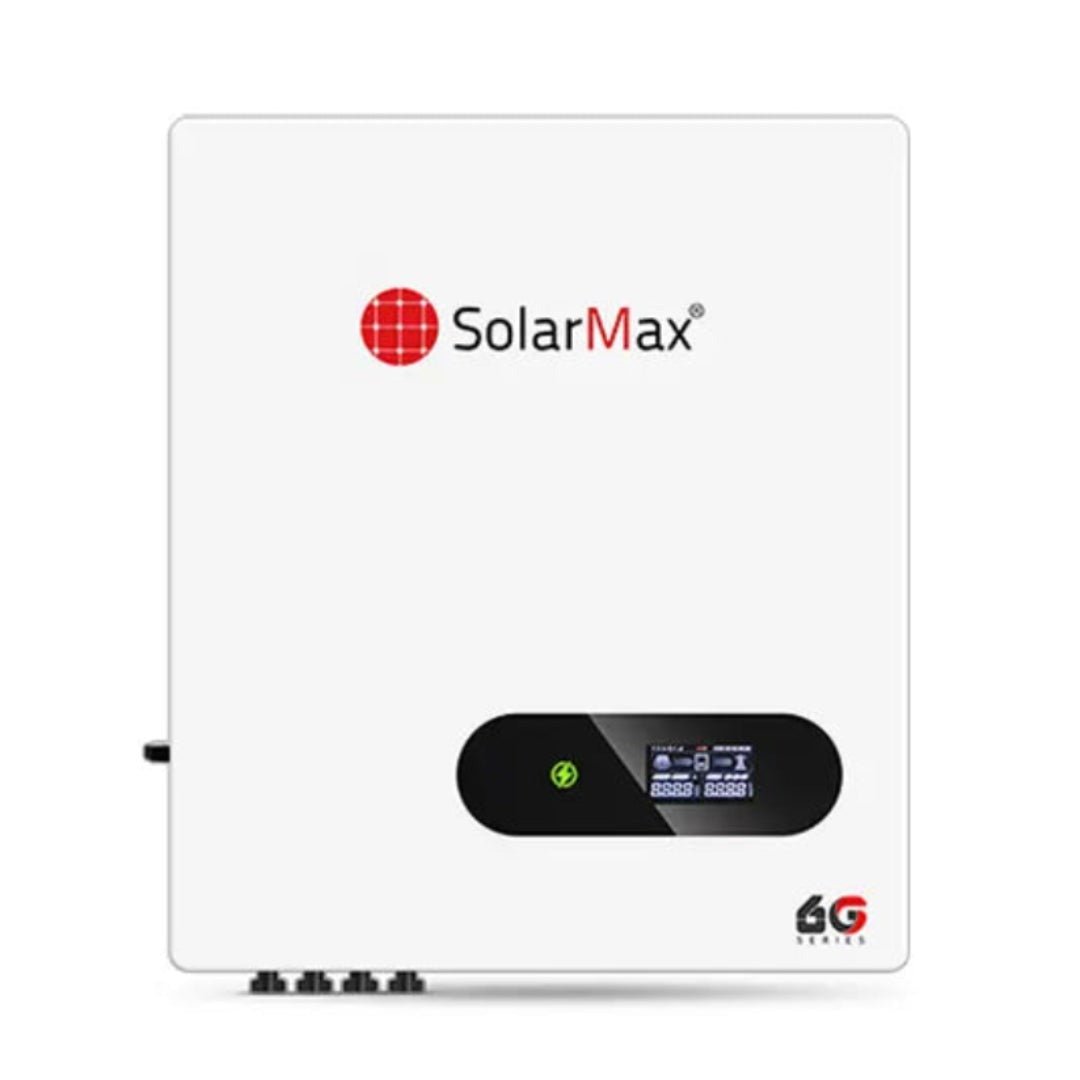

The SolarMax SM-20K-6G3P 20KW On-Grid Solar Inverter is a high-performance grid-tied inverter designed for commercial and large residential solar systems in Pakistan. With 26,000W PV input capacity, dual MPPT trackers, and 98.3% maximum efficiency, it ensures maximum energy harvest and stable grid performance. Built with IP66 protection, the inverter is suitable for both indoor and outdoor installations, offering durability against dust and water. Its smart monitoring system via Bluetooth, WiFi, and Mobile App allows real-time performance tracking for enhanced energy management.
Key Features
20KW Rated AC Output – Ideal for commercial & industrial solar systems
26KW PV Input Capacity – Supports larger solar arrays
Dual MPPT (2 MPPTs) – Optimized power tracking for maximum efficiency
98.3% Maximum Efficiency – High conversion efficiency for better ROI
1100V Max DC Input Voltage – Flexible solar panel configuration
IP66 Protection – Dustproof & waterproof for outdoor installation
Smart Monitoring – Bluetooth, WiFi, RS485 & Mobile App support
Wide MPPT Range (160V–1000V) – Stable performance in varying sunlight conditions
Fan Cooling System – Efficient thermal management
Operating Temperature: -25°C to 60°C – Reliable in extreme weather
| Specification | Details |
|---|---|
| Brand | SolarMax |
| Model | SM-20K-6G3P |
| Inverter Type | On-Grid (Grid-Tied) |
| Rated AC Active Power | 20,000W |
| PV Input Power | 26,000W |
| Max Input Voltage | 1100V |
| Start Input Voltage | 180V |
| MPPT Operating Range | 160V – 1000V |
| MPPT Trackers | 2 MPPT |
| Max Input Current | 2 × 30A |
| Max Efficiency | 98.3% |
| European Efficiency | 98.0% |
| Communication | RS485, WiFi (Optional GPRS/LAN) |
| Display | LED + LCD + Bluetooth APP |
| Cooling System | Fan Cooling |
| Protection Rating | IP66 |
| Operating Temperature | -25°C to 60°C |
| Dimensions (W × H × D) | 398 × 460 × 190 mm |
