Description

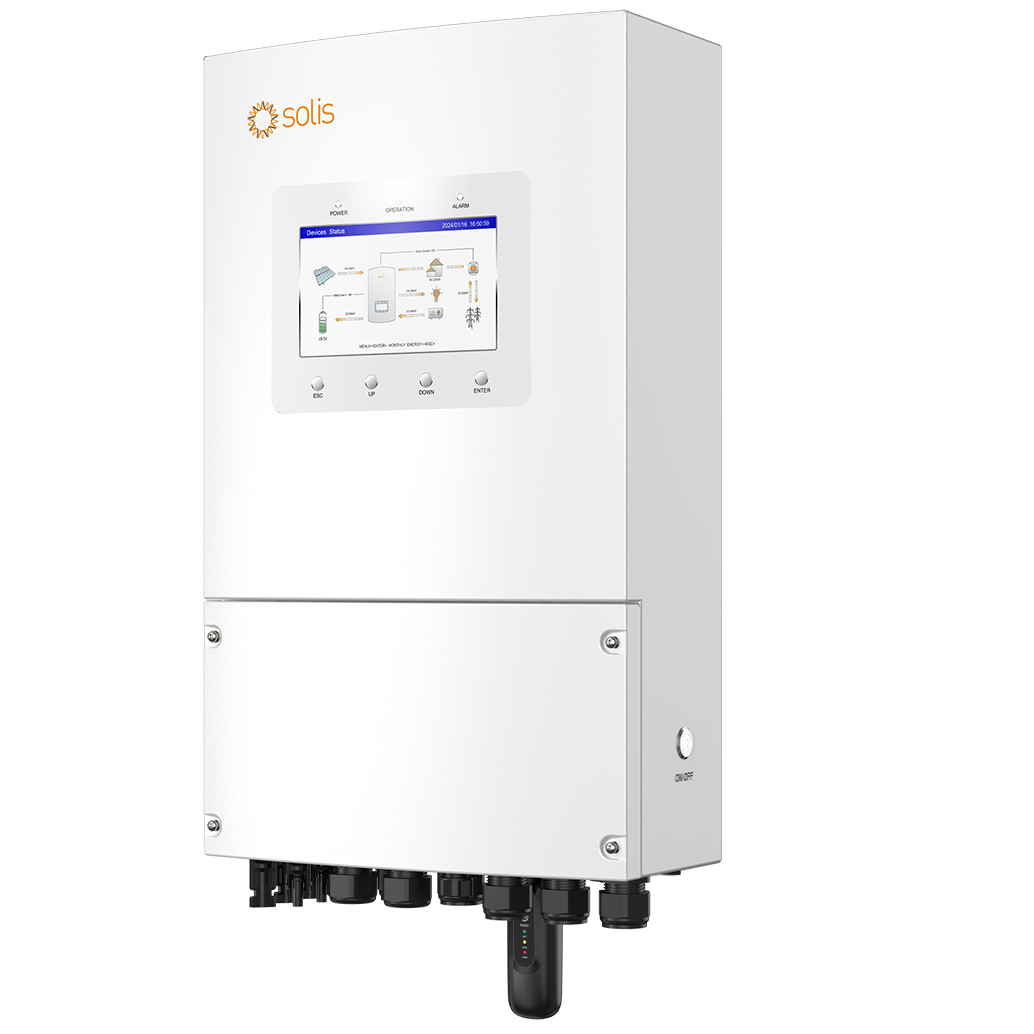

The Solis 10kW S6-EH1P(3-10)K-L-PLUS Hybrid Inverter is a powerful and reliable single-phase solar inverter designed for residential and small commercial solar systems. Built with IP66 protection, it is suitable for both indoor and outdoor installations, offering durability in harsh weather conditions.
Key Features
10kW single-phase hybrid inverter
IP66 rated for outdoor and indoor installation
2 MPPT trackers with 4 input strings
Supports Li-ion and Lead-acid batteries (40–60V)
10kW full backup output capability
High PV capacity up to 20kW recommended array size
Wide MPPT voltage range (90–435V)
Advanced grid and battery management system
| Specification | Details |
|---|---|
| Recommended Max. PV Array Size | 20 kW |
| Max. Usable PV Input Power | 16 kW |
| Max. Input Current | 42 A / 42 A |
| Max. Short Circuit Current | 48 A / 48 A |
| MPPT / Max. Input Strings | 2 MPPT / 4 Strings |
| Max. Charge / Discharge Power | 10 kW |
| Max. Charge / Discharge Current | 210 A |
| Battery Type | Li-ion / Lead-acid (40 – 60 V) |
| Rated Output Power (Grid) | 10 kW |
| Max. Apparent Output Power | 10 kVA |
| Rated Grid Output Current | 45.5 A / 43.5 A |
| Max. Input Current (Grid) | 65 A |
| Rated Output Power (Back-up) | 10 kW |
| Rated Output Current (Back-up) | 45.5 A / 43.5 A |
| Rated Grid Voltage | L/N/PE, 220 V / 230 V |
| MPPT Voltage Range | 90 – 435 V |
| Dimensions (W × H × D) | 335 × 560 × 253 mm |
