Description

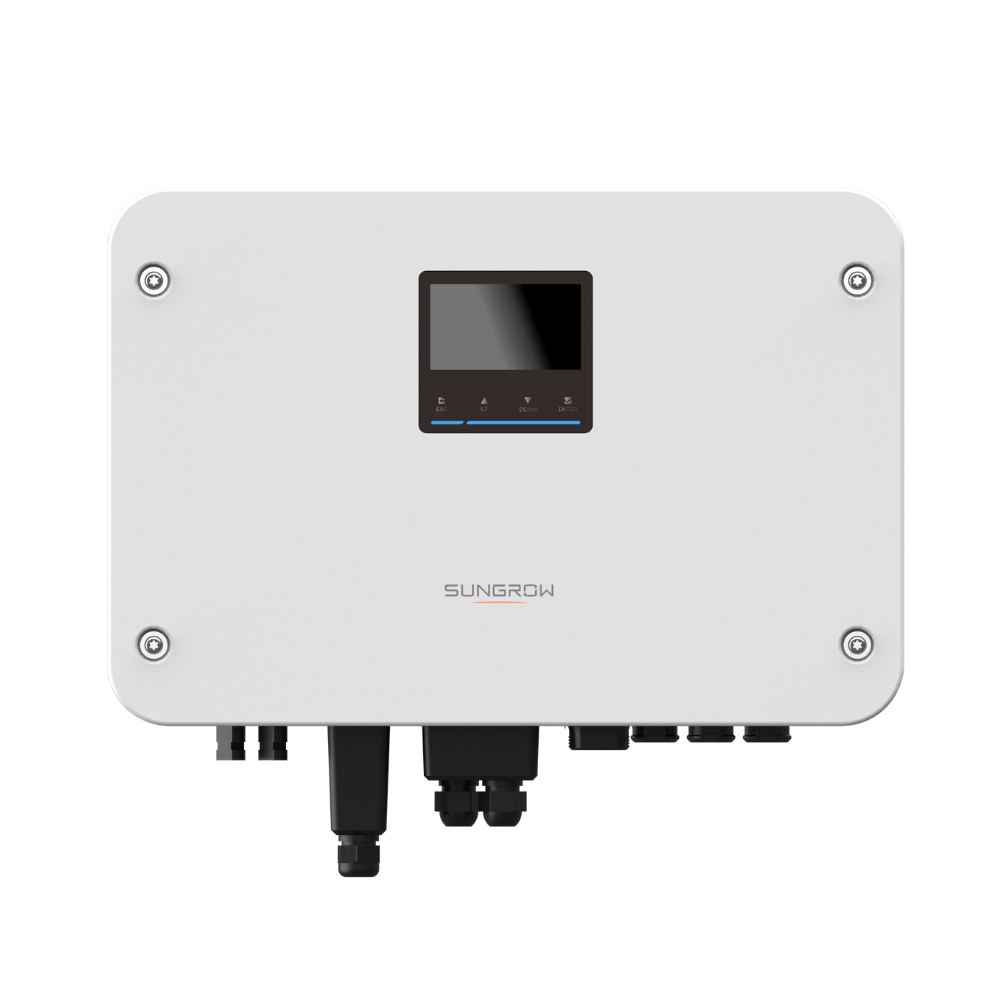

The Sungrow MG6RL Hybrid Inverter is a 6kW high-performance residential solution designed for reliability and efficiency. It offers seamless backup power (switching in under 4ms), 200% peak power for 10 seconds, and advanced battery management. With dual pressure relief, AFCI protection, and a wide MPPT voltage range supporting 20A PV input per string, it ensures safe and flexible operation. The 4.3-inch touchscreen, multiple communication ports, and remote monitoring make system control simple and intuitive.
Key Features:
- 6kW rated AC output power with full backup capability
- Seamless backup switching (< 4 ms) for uninterrupted power
- 200% peak output power for up to 10 seconds
- Maximum 20A PV input current per string
- Wide MPPT operating voltage range (40 – 425 V)
- Supports whole-home backup with 40A bypass switch
- Smart control interface for generators, smart loads, or microinverters
- Dual-system pressure relief for PCS and AFCI protection
- Natural convection cooling with IP65 protection
- 4.3-inch LCD touchscreen with optional Wi-Fi or Ethernet communication
Technical Specifications:
| Specification | MG6RL |
|---|---|
| Recommended Max. PV Input Power | 12,000 Wp |
| Max. Usable PV Input Power | 9,600 Wp |
| Max. PV Input Voltage | 500 V |
| Startup / Min. PV Input Voltage | 50 V / 40 V |
| Rated PV Input Voltage | 360 V |
| MPPT Operating Voltage Range | 40 V – 425 V |
| Number of MPPT Trackers | 2 |
| Max. PV Input Current | 40 A (20 A per string) |
| Battery Type | Lithium-ion |
| Battery Voltage Range | 40 V – 60 V |
| Max. Charge / Discharge Current | 135 A |
| Max. Battery Charge / Discharge Power | 6,000 W |
| AC Output Power (Grid Mode) | 6,000 W |
| Max. Apparent Power | 6,000 VA |
| Rated AC Output Voltage | 220 V / 230 V / 240 V |
| AC Voltage Range | 154 V – 276 V |
| Frequency | 50 Hz / 60 Hz |
| Grid Frequency Range | 45 – 55 Hz / 55 – 65 Hz |
| Harmonic Distortion (THD) | < 3% |
| Power Factor | > 0.99 at rated output |
| Max. Output Power for Backup Load | 6,600 W |
| Backup Mode Voltage / Frequency | 220 / 230 / 240 V |
| Peak Output (10 seconds) | 2x rated power (up to 13,200 W) |
| Switching Time to Backup Mode | ≤ 4 ms |
| Max. Efficiency / European Efficiency | 97.6% / 96.7% |
| Cooling Method | Natural convection |
| Protection Features | DC reverse polarity, AC short-circuit, leakage current, PID, surge protection (DC Type II / AC Type II), AFCI (optional) |
| Degree of Protection | IP65 |
| Display | 4.3″ LCD digital touchscreen & LED indicator |
| Communication | CAN, RS485, Ethernet (optional), WLAN (optional) |
| Dimensions (W x H x D) | 536 mm × 386 mm × 210 mm |
| Weight | < 18 kg |
| Mounting | Wall-mounted |
| Ambient Temperature Range | -25°C to +60°C |
| Certifications | IEC 62109-1/-2, IEC 61000-6-1/-3, IEC 62116, NRS 097-2-1, MEA, PEA, DEWA |
Included in the Package:
- Sungrow MG6RL Hybrid Inverter
- Wall-mounting bracket
- User manual
- Communication interfaces (CAN/RS485)
- Optional Ethernet or WLAN module (if selected)
