APC Smart-UPS 750VA USB & Serial 230V
₨27,500.00
APC 750VA UPS price in Pakistan – Genuine APC UPS available at The Xpert Services, Lahore.
- Model: APC Smart-UPS 750VA USB & Serial 230V
- Pure sine wave output – safe for sensitive devices
- LCD display & automatic voltage regulation (AVR)
- Official warranty included
⚠️ Price Notice: Prices are updated on a daily basis due to market fluctuations. Please confirm the final price before placing your order. Call or WhatsApp us for the latest price.
Description
Output
Max Configurable Power (Watts)
500 Watts / 750VA
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion
Less than 5% at full load
Output Frequency (sync to mains)
47 – 53 Hz for 50 Hz nominal, 57 – 63 Hz for 60 Hz nominal
Topology
Line Interactive
Waveform type
Sine wave
Transfer Time
2ms typical
Input
Input frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input voltage range for main operations
160 – 286V
Input voltage adjustable range for mains operation
151 – 302V
Batteries & Runtime
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
3hour(s)
Replacement Battery
Expected Battery Life (years)
3 – 5
RBC Quantity
1
Battery Charge Power (Watts)
50 Watts
Battery Volt-Amp-Hour Capacity
149
Runtime
Efficiency
Communications & Management

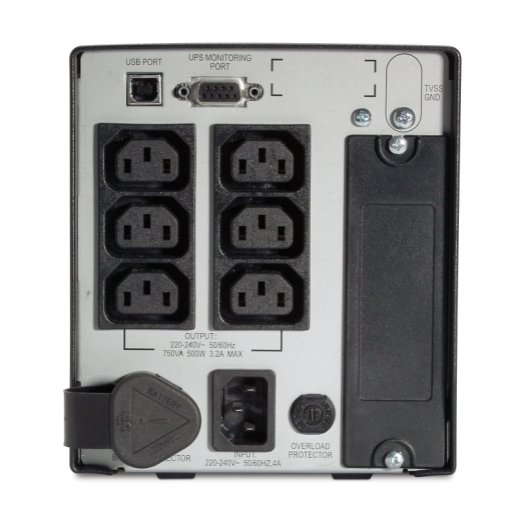

Interface Port(s)
DB-9 RS-232, SmartSlot, USB
Control panel
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)
Optional
Available SmartSlot? Interface Quantity
1
Surge Protection and Filtering
Surge energy rating
340 Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height
157MM, 15.7CM
Maximum Width
137MM, 13.7CM
Maximum Depth
361MM, 36.1CM
Net Weight
13.18KG
Shipping weight
14.55KG
Shipping Height
290MM, 29.0CM
Shipping Width
270MM, 27.0CM
Shipping Depth
500MM, 50.0CM
Color
Black
Master Carton Units
1.0
Units per Pallet
24.0
Environmental
Operating Temperature
0 – 40 ?C
Operating Relative Humidity
0 – 95 %
Operating Elevation
0-3000meters
Storage Temperature
-15 – 45 ?C
Storage Relative Humidity
0 – 95 %
Storage Elevation
0-15000meters
Audible noise at 1 meter from surface of unit
40.0dBA
Online thermal dissipation
90.0BTU/hr
Conformance
Approvals
C-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, GOST, IEC 60950, VDE
Standard warranty
2 years repair or replace
Sustainable Offer Status
RoHS
Compliant
REACH
REACH: Contains No SVHCs
PEP
Available in Documentation tab
EOLI
Available in Documentation tab
Other Environmental Compliance
China RoHS
Additional information
| Weight | 14.55 lbs |
|---|---|
| Dimensions | 50 × 27 × 29 in |
