Description

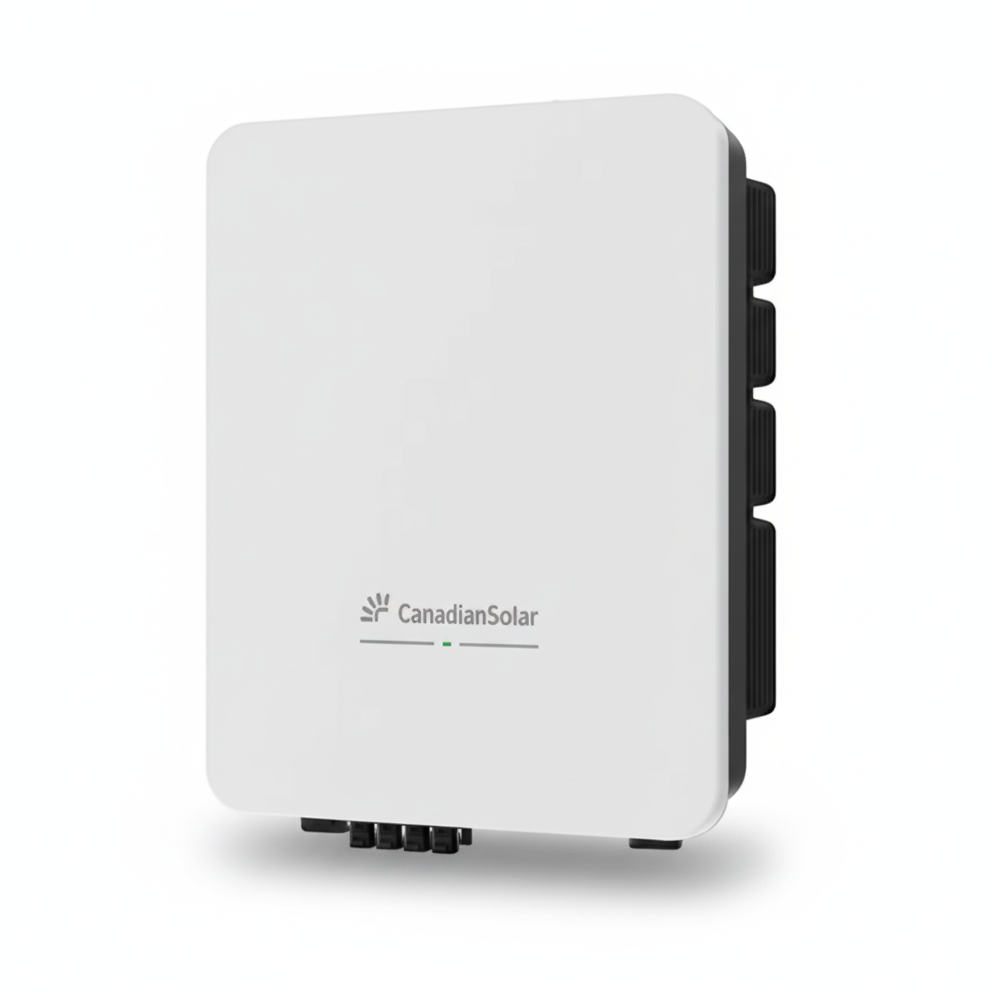

The Canadian Solar CSI-10K-T4001A-E is a high-performance 10kW grid-tied solar inverter designed to maximize energy efficiency and reliability. With a maximum efficiency of up to 98.6% and CEC efficiency up to 98.0%, it ensures optimal power conversion for residential and commercial solar systems. Equipped with dual MPPTs, this inverter delivers superior performance even in complex installation conditions. Each string supports up to 16A input current, making it ideal for modern high-power solar modules.
Key Features:
-
High Efficiency: Up to 98.6% max efficiency and 98.0% CEC efficiency.
-
Dual MPPT Design: Ensures higher system yield under variable conditions.
-
High Input Capacity: 16A per string, compatible with high-power PV modules.
-
Lightweight & Easy Installation: Simplifies setup and reduces labor costs.
-
Zero Export Function: Supports grid compliance and flexible energy management.
| Feature | Canadian Solar CSI-10K-T4001A-E |
| INPUT (DC) | |
| Max. Input Voltage | 1100 Vdc |
| Start-up DC Input Voltage | 180 Vdc |
| Rated Input Voltage | 630 Vdc |
| MPPT Voltage Range | 160 – 1000 Vdc |
| Max. String Input No. | 2 |
| MPPT No. | 2 |
| Max. Input Current | 2 * 20 A |
| Max. DC short-circuit current | 2 * 30 A |
| OUTPUT (AC) | |
| Rated AC Output Power | 10 kW |
| Max. AC Output Power (Apparent) | 10 kVA |
| Rated Output Voltage | 380 Vac / 400 Vac |
| Grid Connection Type | 3 L / N / PE |
| Max Output Current | 15.1 A |
| Rated Output Frequency | 50 / 60 Hz |
| THDI | < 3% |
| Power Factor | 0.8 leading … 0.8 lagging |
| Zero Export Solution | Supported |
| EFFICIENCY | |
| Max. Efficiency | 98.3% |
| EU Efficiency | 97.4% |
| ENVIRONMENT | |
| Protection Degree | IP66 |
| Cooling | Intelligent Air Cooling |
| Operating Temperature Range | -30 °C to +60 °C |
| Operating Humidity | 0 – 100% Non-condensing |
| Operating Altitude | 4000 m (>3000 m derating) |
| PROTECTION | |
| DC Switch | Yes |
| Anti-Islanding Protection | Yes |
| DC Reverse-Polarity Protection | Yes |
| DC Insulation Resistance Detection | Yes |
| Residual Current Monitoring | Yes |
| AC Output Over Current Protection | Yes |
| AC Short Circuit Protection | Yes |
| Grid Monitoring | Yes |
| AFCI | Optional |
| DC / AC SPD | DC SPD Type II / AC SPD Type II |
| DISPLAY AND COMMUNICATION | |
| Display | LED Indicators & APP |
| Communication | WiFi (Optional) |
