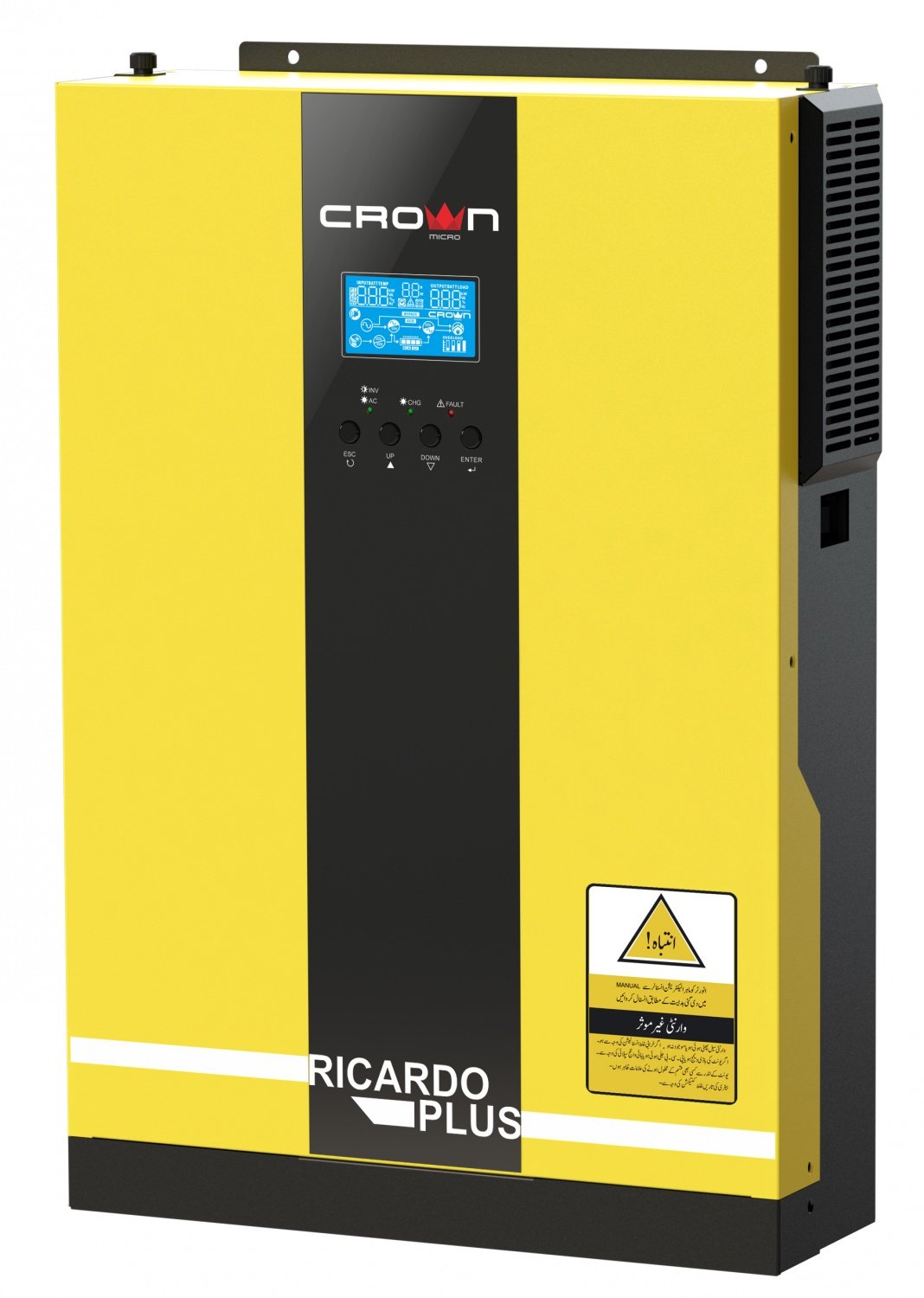

Crown Micro RICARDO PLUS VM II 3-5 KW Grid Tie Inverter

Crown Micro RICARDO PLUS VM II 3-5 KW Grid Tie Inverter

Crown 5KW solar inverter price in Pakistan – Available at The Xpert Services, Lahore.

  • Model: Crown Micro RICARDO PLUS VM II 3-5 KW Grid Tie Inverter
  • Hybrid / On-Grid / Off-Grid options available
  • Built-in MPPT solar charge controller
  • Wi-Fi monitoring & remote control support
  • Warranty & technical support included
⚠️ Price Notice: Prices are updated on a daily basis due to market fluctuations. Please confirm the final price before placing your order. Call or WhatsApp us for the latest price.
SKU: Crown Micro RICARDO PLUS VM II 3-5 KW Category: Tags: , ,

Description

MODEL RDIU PLUS 3KW-M RDIU PLUS 5KW-M
CAPACITY 3000VA / 3000W 5000VA / 5000W
INPUT
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers)
90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230VAC ± 5%
Surge Power 6000VA 10000VA
Efficiency (Peak) 90% ~ 93%
Transfer Time “10 ms (For Personal Computers) 20 ms (For Home Appliances)”
Waveform Pure sine wave
BATTERY
Battery Voltage 24 VDC 48 VDC
Floating Charge Voltage 27 VDC 54 VDC
Overcharge Protection 32 VDC 63 VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Power 4000W 5000W
MPP Range @ Operating Voltage 120~450 VDC 120~450 VDC
Maximum Solar Charge Current 80 A 80 A
Maximum AC Charge Current 60 A 60 A
Maximum Charge Current 80 A 80 A
PHYSICAL
Dimension, D X W X H (mm) 100 x 300 x 440
Net Weight (kgs) 9 10
Communication Interface USB/RS232
ENVIRONMENT
Humidity 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature -10℃ to 50℃
Storage Temperature -15℃ to 60℃

Additional information

Weight 10 lbs
Dimensions 100 × 300 × 440 in
