Description

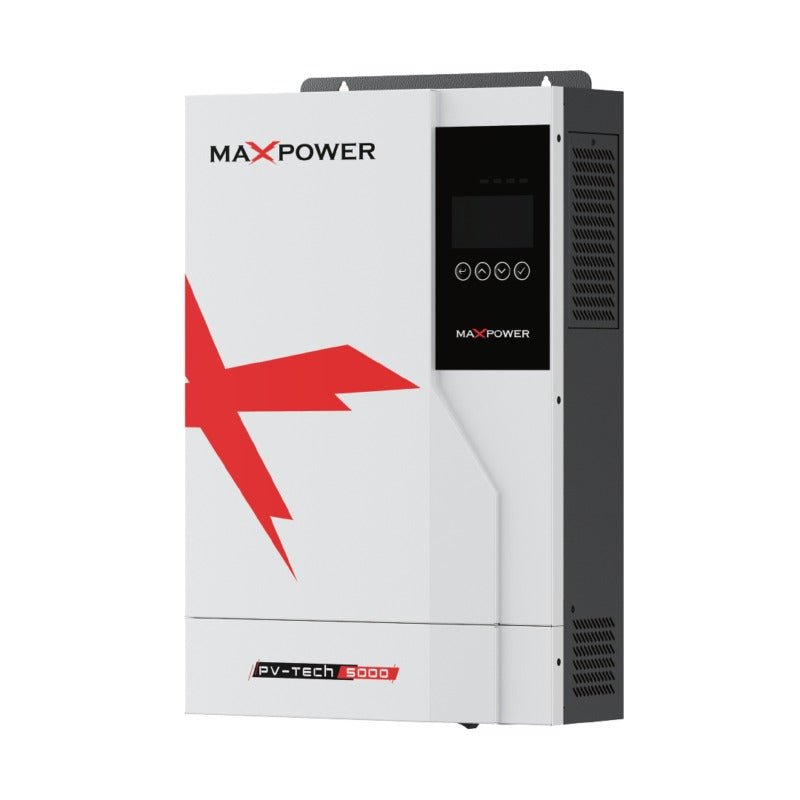

The MAXPOWER PV TECH 5000 Single Phase Hybrid Inverter is a reliable and efficient solar power solution designed for residential and small commercial solar systems. With a 3.6KW rated output and 5000W maximum PV input, this inverter delivers stable energy conversion and intelligent power management. Equipped with advanced MPPT solar charging technology, the inverter maximizes solar energy harvesting while supporting both Lithium-ion and Lead-acid batteries. It can also operate without a battery, making it a flexible solution for different solar setups.
Key Features
Rated Output Capacity – 3.6KW
Provides stable and reliable power for home appliances and small solar systems.
Maximum PV Input – 5000W
Supports up to 5000W of solar panel input for higher solar energy utilization.
Advanced MPPT Solar Charger
Maximizes solar energy harvesting by tracking the optimal power point of solar panels.
Wide MPPT Voltage Range
Ensures efficient solar charging across a broad PV voltage operating range.
Pure Sine Wave Output
Delivers clean and stable electricity safe for sensitive electronics and appliances.
Single AC Output
Designed for efficient single-phase power distribution in residential setups.
Works Without Battery
Can operate directly from solar panels and grid power even without a battery installed.
Lithium & Lead-Acid Battery Support
Compatible with both lithium-ion and traditional lead-acid batteries for flexible installation.
| Specification | Details |
|---|---|
| Model | MAXPOWER PV TECH 5000 |
| AC Input Voltage | 208 / 220 / 230 / 240 VAC (L + N + PE) |
| AC Input Voltage Range | 90–280 ±3 VAC (Normal Mode), 170–280 ±3 VAC (UPS Mode) |
| AC Input Frequency | 50/60Hz (Auto Adaptive) |
| Rated Output Capacity | 3.6 KW |
| Surge Power | 5.7 KVA |
| AC Output Voltage | 208 / 220 / 230 / 240 VAC |
| Frequency | 50/60Hz ±0.1% |
| Switch Time | 10ms (Normal Mode) / 10ms (UPS Mode) |
| Output Waveform | Pure Sine Wave |
| Overload Capacity (Battery Mode) | 60s @ 102–110% load; 10s @ 110–130% load; 3s @ 130–150% load; 0.2s @ >150% load |
| Max Efficiency (Battery Mode) | 92.7% @ 24VDC |
| Parallel Quantity | Not Supported |
| Solar Charger Type | MPPT |
| Max PV Input Current / Power | 18A / 5000W |
| MPPT Operating Voltage Range | 40 – 450 VDC |
| Max PV Open Circuit Voltage | 500 VDC |
| Max PV Charge Current | 100 A |
| Max AC Charge Current | 100 A |
| Max Charge Current (PV + AC) | 100 A |
| Battery Rated Voltage | 24 VDC |
| Floating Charge Voltage | 27 VDC |
| Overcharge Protection | 30.5 VDC |
| Battery Type | Lithium-ion / Lead-acid |
| Display (HMI) | LCD |
| Communication Interface | RS485 / RS232 / USB / Dry Contact |
| Monitoring | WiFi (Optional) |
| Protection Rating | IP21 |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
| Relative Humidity | 5% – 95% (Non-condensing) |
| Net Weight | 6.4 kg |
| Dimensions (W × H × D) | 420 × 284 × 94 mm |
| Max Operating Altitude | 4000 m (Derating above 1000 m) |
