Description

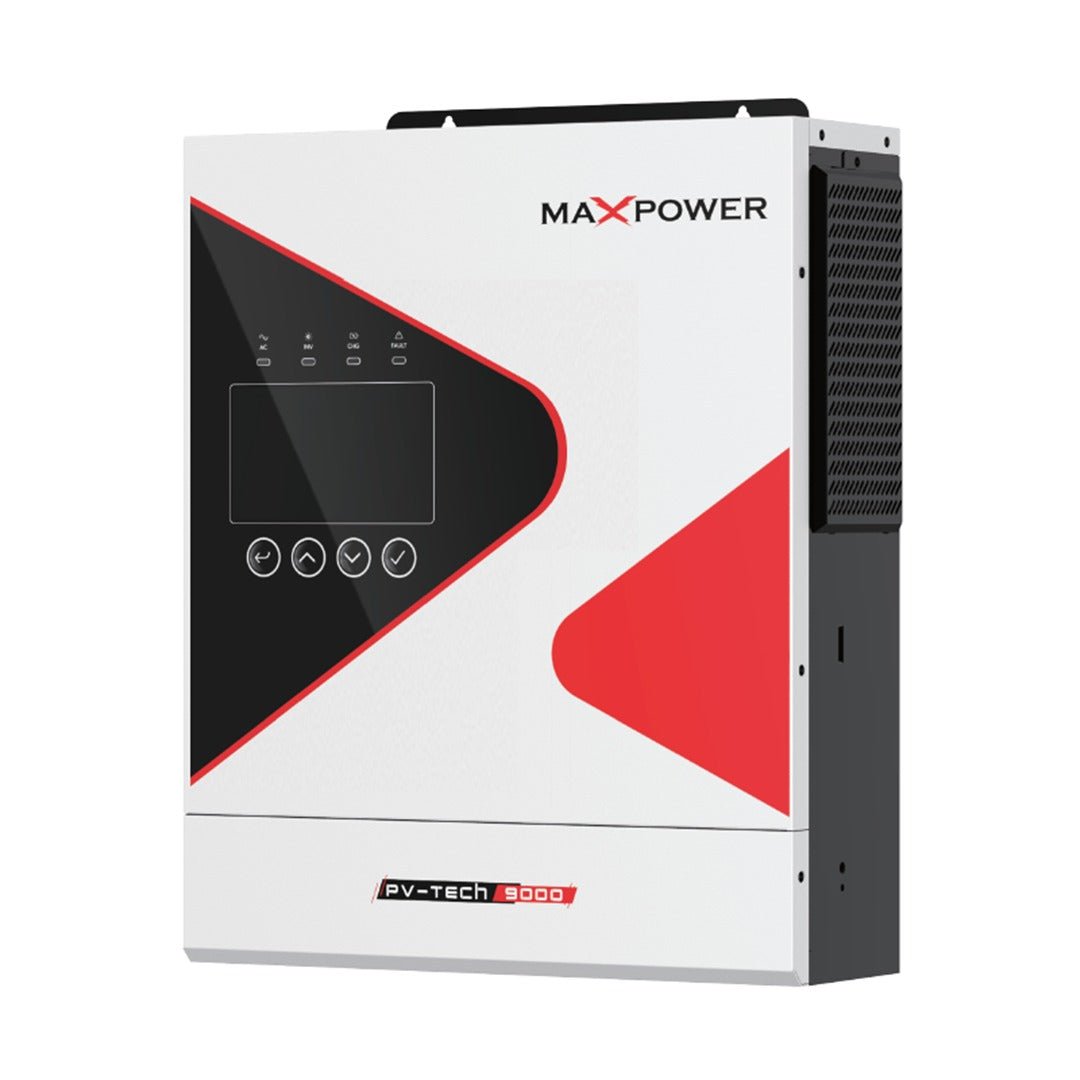

The MaxPower PV Tech 9000 Single Phase Hybrid Inverter is a powerful and intelligent solar energy solution designed for residential and small commercial solar systems. With a 6kW output capacity and 12kVA surge power, this inverter ensures stable performance for running essential appliances and heavy loads. Equipped with an advanced MPPT solar charger and 27A maximum PV input, the PV Tech 9000 maximizes solar energy harvesting for improved system efficiency. Its wide MPPT operating voltage range (60-450V) and 500V maximum PV open circuit voltage allow compatibility with a wide range of solar panel configurations.
Key Features
6kW Rated Output Power – Suitable for homes, offices, and small commercial solar systems
12kVA Surge Capacity – Handles heavy startup loads easily
Built-in 100A Solar Charger – Efficient solar charging for faster battery recovery
27A Maximum PV Input – Optimized solar energy utilization
MPPT Operating Voltage 60-450V – Wide solar input range for flexible panel configurations
500V Max PV Open Circuit Voltage – Supports larger solar arrays
Dual AC Output – Dedicated output for critical and non-critical loads
Built-in WiFi Monitoring – Remote monitoring via mobile app
5-inch LCD Display – Clear and user-friendly system interface
Generator Compatible – Works with backup generators for extended power reliability
Lithium Battery Activation – Easy integration with lithium battery systems
Supports Lithium-ion & Lead-acid Batteries – Flexible battery compatibility
Pure Sine Wave Output – Safe for sensitive electronics and appliances
Fast 10ms Transfer Time – Seamless switching during power outages
| Specification | Details |
|---|---|
| Model | PV Tech 9000 |
| Rated Capacity | 6 kW |
| Surge Power | 12 kVA |
| AC Input Voltage | 208 / 220 / 230 / 240 VAC |
| Voltage Range | 90-280V (Normal Mode), 170-280V (UPS Mode) |
| Frequency | 50 / 60Hz (Auto Adaptive) |
| AC Output Voltage | 208 / 220 / 230 / 240 VAC |
| Power Factor | 1.0 |
| Waveform | Pure Sine Wave |
| Switch Time | 10ms |
| Max Efficiency | 94% @ 48VDC |
| Solar Charger Type | MPPT |
| Max PV Input | 27A / 9000W |
| MPPT Voltage Range | 60-450V |
| Max PV Open Circuit Voltage | 500V |
| Max PV Charge Current | 120A |
| Max AC Charge Current | 120A |
| Battery Voltage | 48V |
| Battery Type | Lithium-ion / Lead-acid |
| Display | LCD |
| Communication | RS485 / RS232 / USB |
| Monitoring | WiFi (Optional Internal / External) |
| Protection Level | IP21 |
| Operating Temperature | -10°C to 50°C |
| Net Weight | 8.4 kg |
| Dimensions | 410 × 334 × 110 mm |
