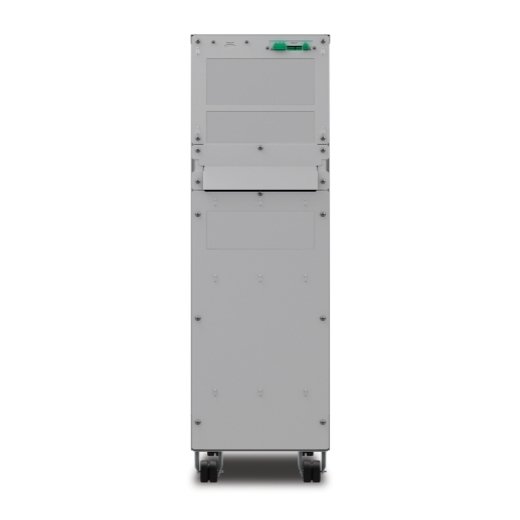

MGE Galaxy 300 20kVA 400V
MGE Galaxy 300 20kVA 400V - Image 2
MGE Galaxy 300 20kVA 400V - Image 3

MGE Galaxy 300 20kVA 400V

APC UPS price in Pakistan – Genuine APC UPS available at The Xpert Services, Lahore.

  • Model: MGE Galaxy 300 20kVA 400V
  • Pure sine wave output – safe for sensitive devices
  • LCD display & automatic voltage regulation (AVR)
  • Official warranty included
⚠️ Price Notice: Prices are updated on a daily basis due to market fluctuations. Please confirm the final price before placing your order. Call or WhatsApp us for the latest price.
SKU: MGE Galaxy 300 20kVA 400V Category: Tag:

Description

Technical Specifications

Output

Max Configurable Power (Watts)

16.0kWatts /?20.0kVA

Output Voltage Note

Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage

Output Voltage Distortion

Less than 5%

Output Frequency (sync to mains)

50/60 Hz +/- 5%

Output Frequency (not synced)

60Hz +/- 0.1% for 60Hz nominal, 50Hz +/- 0.1% for 50Hz nominal

Other Output Voltages

380, 415

Load Crest Factor

2.5 : 1

Topology

Double Conversion Online

Waveform type

Sine wave

Maximum Output Current

43

Output Voltage THD

< 3% linear load and <5% non-linear load

Output Voltage Tolerance

+/- 2% static and 100% load step

Input

Input frequency

45 – 65 Hz

Input voltage range for main operations

340 – 477 V

Input voltage adjustable range for mains operation

323 – 437 (380 V), 340 – 460 (400 V), 357 – 477 (415 V)V

Input Total Harmonic Distortion

Less than 5% for full load

Type of Input Protection Required

gL fuse

Other Input Voltages

380, 415

Input Power Factor at Full Load

0.98

Batteries & Runtime

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Nominal Battery Voltage

+/-192 V (split battery referenced to neutral)

End of Discharge Battery Voltage

+/-154 V

Communications & Management

Interface Port(s)

DB-9 RS-232, USB

Pre-Installed SmartSlot? Cards

AP9630

Control panel

Multi-function LCD status and control console

Emergency Power Off (EPO)

Yes

Physical

Maximum Height

1300 MM, 130.0 CM

Maximum Width

400 MM, 40.0 CM

Maximum Depth

950 MM, 95.0 CM

Net Weight

375.0 KG

Shipping weight

400.0 KG

Shipping Height

1440 MM, 144.0 CM

Shipping Width

800 MM, 80.0 CM

Shipping Depth

965 MM, 96.5 CM

Environmental

Operating Temperature

0 – 35 ?C

Operating Relative Humidity

0 – 95 %

Operating Elevation

0-3000 meters

Storage Temperature

-10 – 60 ?C

Storage Relative Humidity

0 – 95 %

Storage Elevation

0-9000 meters

Audible noise at 1 meter from surface of unit

54.5 dB A

Online thermal dissipation

1260.0 BTU/hr

Protection Class

IP 20

Conformance

Approvals

CE, EN/IEC 62040-1-1, EN/IEC 62040-2, EN/IEC 62040-3, IEC 61000-4-5, IEC 62040-2, TUV, VFI-SS-111

Standard warranty

1 year on-site repair or replace with factory authorized Start-Up

Sustainable Offer Status

RoHS

Compliant

Battery Directive

Compliant

Additional information

Weight 400 lbs
Dimensions 965 × 800 × 1440 in
