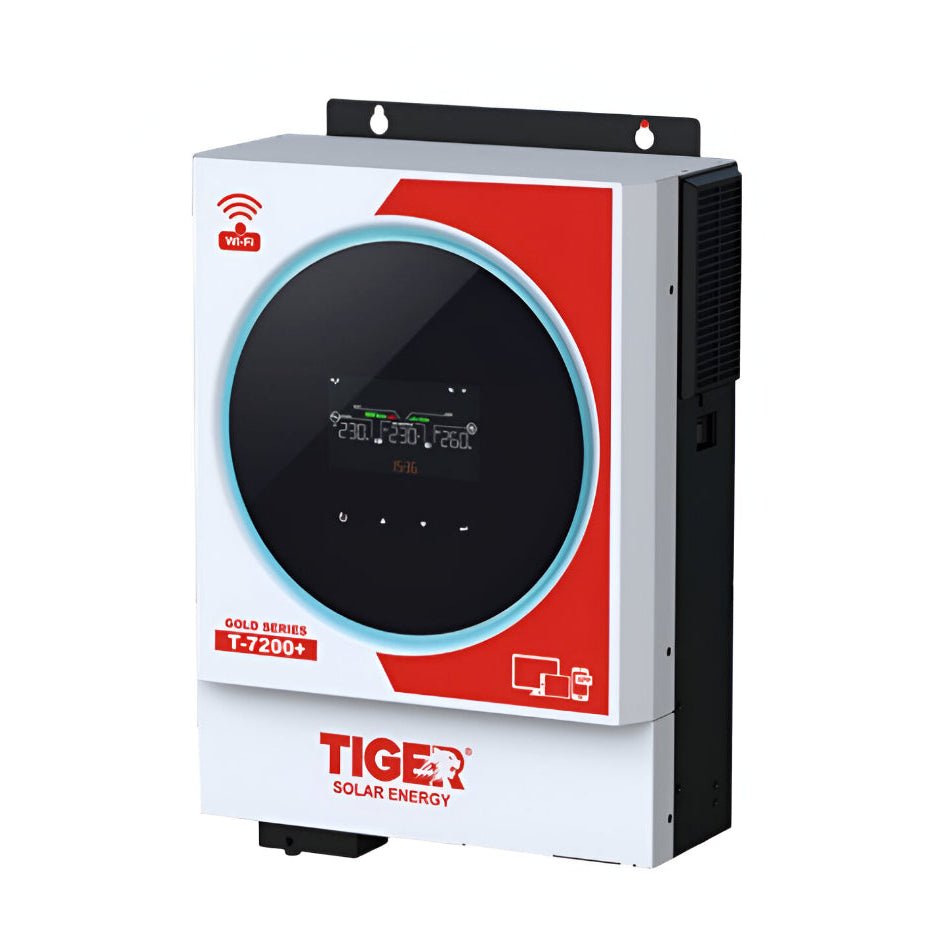

Tiger T-7200+ Gold Series 4kW Hybrid Solar Inverter With 7200W PV | Built-in WiFi | Dual Output | BMS Port
₨124,999.00
Tiger 4KW solar inverter price in Pakistan – Available at The Xpert Services, Lahore.
- Model: Tiger T-7200+ Gold Series 4kW Hybrid Solar Inverter With 7200W PV | Built-in WiFi | Dual Output | BMS Port
- Hybrid / On-Grid / Off-Grid options available
- Built-in MPPT solar charge controller
- Wi-Fi monitoring & remote control support
- Warranty & technical support included
⚠️ Price Notice: Prices are updated on a daily basis due to market fluctuations. Please confirm the final price before placing your order. Call or WhatsApp us for the latest price.
Description
Upgrade your power system with the Tiger Solar Energy Hybrid Inverter T-7200+ Gold Series, a high-performance solution designed for maximum efficiency and reliability. This advanced hybrid inverter seamlessly integrates solar energy, battery storage, and grid power to deliver uninterrupted electricity for your home or business.
Key Features:
- Model: Tiger Solar Energy Hybrid Inverter T-7200+ Gold Series
- Advanced MPPT controller for optimal solar performance
- Pure sine wave output for safe appliance operation
- Compatible with solar panels, batteries, and grid power
- High efficiency and intelligent power management
- Durable design for long-term reliability
| Specification | Details |
|---|---|
| Model | Tiger Gold Series T-7200+ |
| Rated Power | 4000VA / 4000W |
| Input Voltage | 230 VAC |
| Selectable Voltage Range | 170–280 VAC (For Personal Computers) / 90–280 VAC (For Home Appliances) |
| Frequency Range | 50 Hz / 60 Hz (Auto sensing) |
| AC Voltage Regulation (Batt. Mode) | 230VAC ±10% |
| Surge Power | 8000VA |
| Efficiency (Peak) | 90% ~ 93% |
| Transfer Time | 10 ms (For PCs) / 20 ms (For Home Appliances) |
| Waveform | Pure Sine Wave |
| Battery Voltage | 24 VDC |
| Floating Charge Voltage | 27 VDC |
| Overcharge Protection | 33 VDC |
| Solar Charger Type | MPPT |
| Maximum PV Array Power | 7200W |
| MPP Range @ Operating Voltage | 60 ~ 450 VDC |
| Maximum PV Array Open Circuit Voltage | 500 VDC |
| Maximum PV Input Current | 40A |
| Maximum Solar Charge Current | 120A |
| Maximum AC Charge Current | 100A |
| Maximum Combined Charge Current | 120A |
| Dimension (D × W × H) | 136 × 300 × 400.2 mm |
| Net Weight | 10 kg |
| Communication Interface | USB / RS232 / RS485 / WiFi / Dry-contact |
| Humidity | 5% to 95% RH (Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
