Description

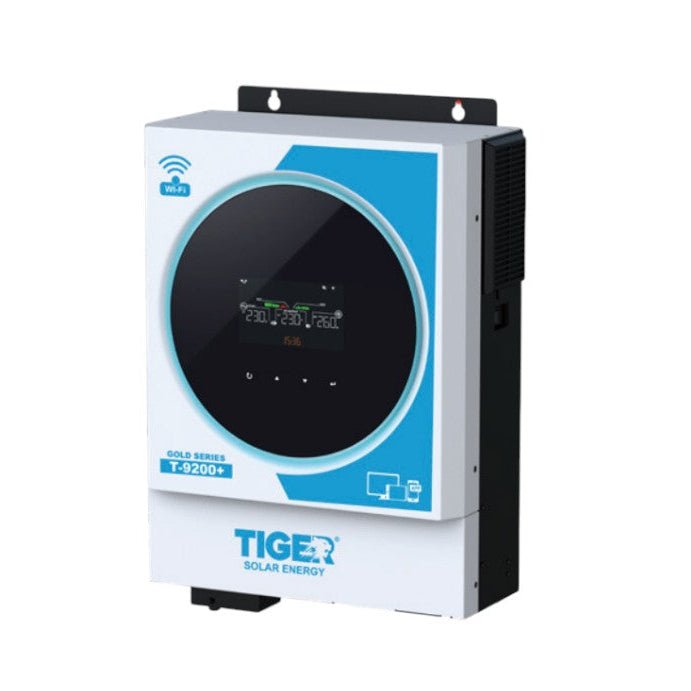

Built with MPPT solar charging technology, pure sine wave output, and a high 93% efficiency rate, the T-9200+ delivers reliable, clean, and stable power for sensitive electronics and heavy appliances alike. Its smart protection features and parallel operation support make it ideal for modern off-grid or hybrid energy systems.
Key Features:
-
Rated Power: 6KW for stable and high-capacity output
-
Hybrid Functionality: Works with solar, battery, and grid sources
-
High MPPT Efficiency: Maximizes solar energy conversion
-
Pure Sine Wave Output: Safe for sensitive electronics
-
Smart LCD Display: Easy monitoring and operation
-
Built-in Protection: Overload, short circuit, and overcharge safeguards
-
Parallel Function Support: Expandable system up to multiple units
-
Compact & Durable Design: Ideal for home, office, and commercial setups
| Specification |
Details |
| Model |
Gold Series T-9200+ |
| Rated Power |
6000VA / 6000W |
| Input Voltage |
230 VAC |
| Selectable Voltage Range |
170–280 VAC (For Personal Computers) / 90–280 VAC (For Home Appliances) |
| Frequency Range |
50 Hz / 60 Hz (Auto Sensing) |
| AC Voltage Regulation (Battery Mode) |
230VAC ± 10% |
| Surge Power |
12000VA |
| Efficiency |
90% ~ 93% |
| Transfer Time |
10 ms (For Personal Computers) / 20 ms (For Home Appliances) |
| Waveform |
Pure Sine Wave |
| Battery Voltage |
48 VDC |
| Floating Charge Voltage |
54 VDC |
| Overcharge Protection |
63 VDC |
| Solar Charger Type |
MPPT |
| Maximum PV Array Power |
9200W |
| MPP Range @ Operating Voltage |
60 ~ 450 VDC |
| Maximum PV Array Open Circuit Voltage |
500 VDC |
| Maximum PV Input Current |
40A |
| Maximum Solar Charge Current |
120A |
| Maximum AC Charge Current |
100A |
| Maximum Combined Charge Current |
120A |
| Dimensions (D × W × H) |
136 × 300 × 400.2 mm |
| Net Weight |
12 kg |
| Communication Interface |
USB / RS232 / RS485 / WiFi / Dry-contact |
| Humidity |
5% to 95% RH (Non-condensing) |
| Operating Temperature |
-10°C to 50°C |
| Storage Temperature |
-15°C to 60°C |
