Description
Built with MPPT technology, the T-9500+ Gold Series maximizes solar energy conversion, offering higher performance and longer battery life. Its pure sine wave output ensures safe operation for all sensitive electronics, while intelligent protection features safeguard against overload, short circuit, and voltage fluctuations.
Key Features:

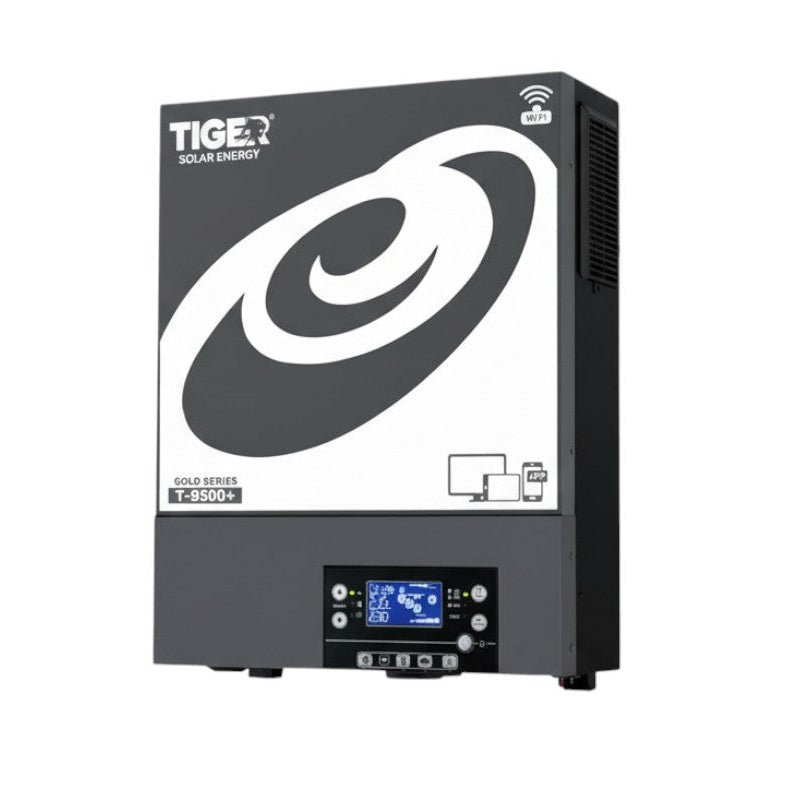

- Model: Tiger Solar Energy Gold Series T-9500+
- Rated Power: 9500W (High-capacity hybrid inverter)
- MPPT solar charge controller for maximum efficiency
- Pure sine wave output for stable and clean power
- Intelligent energy management system
- Compatible with solar panels, batteries, and grid power
- Durable construction and elegant gold design
- Ideal for homes, offices, and off-grid applications
Upgrade to the Tiger Gold Series T-9500+ Hybrid Inverter for powerful, smart, and sustainable energy performance that you can depend on.
| Specification | Details |
|---|---|
| Model | Tiger Gold Series T-9500+ |
| Rated Power | 6500VA / 6500W |
| Input Voltage | 230 VAC |
| Selectable Voltage Range | 170–280 VAC (For Personal Computers) / 90–280 VAC (For Home Appliances) |
| Frequency Range | 50 Hz / 60 Hz (Auto Sensing) |
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% |
| Surge Power | 13000VA |
| Efficiency | 93% |
| Transfer Time | 10 ms (For PCs) / 20 ms (For Home Appliances) |
| Waveform | Pure Sine Wave |
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 63 VDC |
| Solar Charger Type | MPPT |
| Maximum PV Array Power | 9500W |
| MPP Range @ Operating Voltage | 60 ~ 450 VDC |
| Maximum PV Array Open Circuit Voltage | 500 VDC |
| Maximum PV Input Current | 40A |
| Maximum Solar Charge Current | 120A |
| Maximum AC Charge Current | 120A |
| Maximum Combined Charge Current | 120A |
| Dimension (D × W × H) | 131 × 336 × 435.5 mm |
| Net Weight | 12.8 kg |
| Communication Interface | USB / RS232 / RS485 / WiFi / Dry-contact |
| Humidity | 5% to 95% RH (Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
