Description
Equipped with MPPT solar technology, the T-9900 Max Gold Series ensures optimal solar energy conversion and higher system performance. Its pure sine wave output delivers clean, consistent power for sensitive electronics, while intelligent protection features safeguard your system against overloads, voltage fluctuations, and short circuits.
- Key Features:

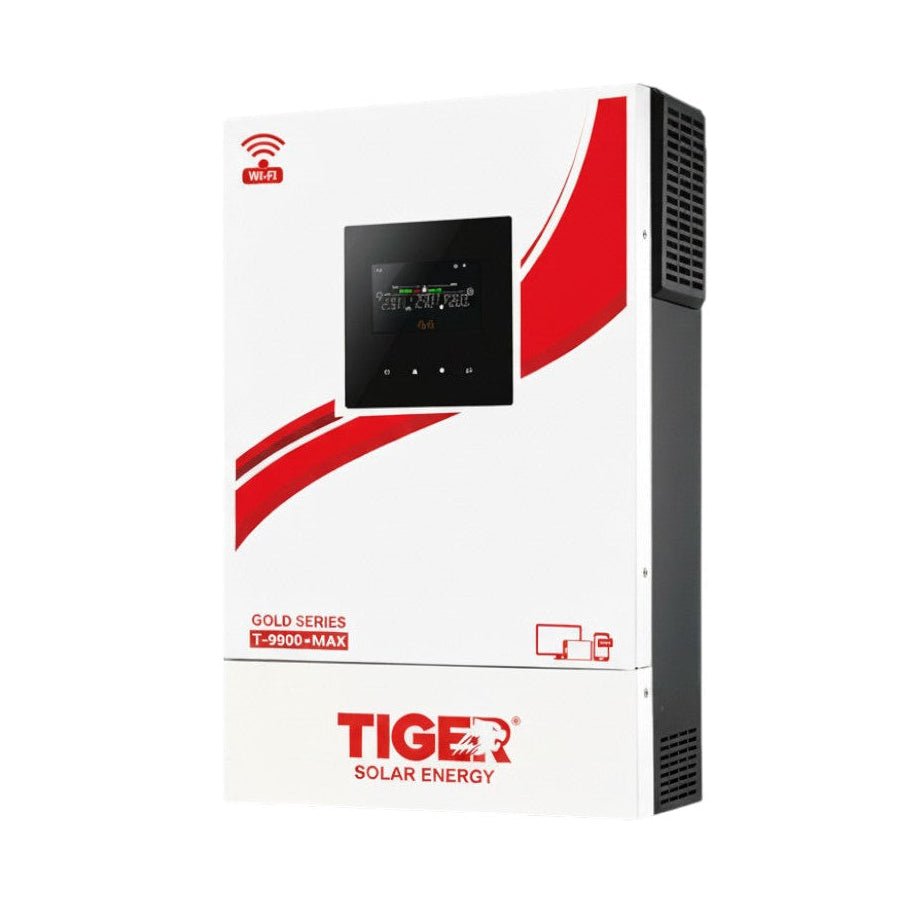

- Model: Tiger Solar Energy T-9900 Max Gold Series
- Rated Power: 9900W high-capacity hybrid inverter
- MPPT solar charge controller for maximum efficiency
- Pure sine wave output for safe and reliable operation
- Compatible with solar panels, batteries, and grid input
- Advanced protection against overload and short circuit
- Durable build with elegant gold design finish
- Ideal for homes, offices, and commercial setups
Upgrade to the Tiger Solar Energy T-9900 Max Gold Series for powerful, efficient, and eco-friendly energy performance — designed to keep your world running without interruption.
| Specification | Details |
|---|---|
| Model | Tiger Gold Series T-9900+ Max |
| Phase | 1-Phase In / 1-Phase Out |
| Maximum PV Input Power | 9900W |
| Rated Output Power | 7000W with PV & Battery / 6200W with Battery Only |
| Nominal DC Voltage / Max DC Voltage | 360 VDC / 500 VDC |
| Start-up / Initial Feeding Voltage | 120 VDC / 150 VDC |
| MPP Voltage Range | 120 VDC ~ 430 VDC |
| Number of MPP Trackers / Max Input Current | 2 / 18A + 18A |
| Nominal AC Output Voltage | 220 / 230 / 240 VAC |
| Output Voltage Range | 184–264.5 VAC or 195.5–253 VAC (Selectable) |
| Nominal Output Current | 30.44A |
| Power Factor | >0.99 |
| Efficiency (Grid Mode) | 96% |
| AC Start-up / Auto Restart Voltage | 120–140 VAC / 180 VAC |
| Acceptable Input Voltage Range | 90–280 VAC or 170–280 VAC |
| Maximum AC Input Current | 40A |
| Maximum DC Voltage (Off-Grid) | 500 VDC |
| Battery Mode Output Voltage | 220 / 230 / 240 VAC |
| Output Waveform | Pure Sine Wave |
| Efficiency (Battery Mode) | 93% |
| Nominal DC Battery Voltage | 48 VDC |
| Maximum Solar Charging Current | 120A |
| Maximum AC Charging Current | 120A |
| Maximum Combined Charging Current | 120A |
| Nominal Output Current (Battery Mode) | 27A |
| Dimension (D × W × H) | 138.4 × 295 × 491.8 mm |
| Net Weight | 14 kg |
| Parallel Function | Yes, up to 9 Units |
| Communication Port | Available |
| Humidity | 0–90% RH (Non-condensing) |
| Operating Temperature | -10°C to 50°C |
