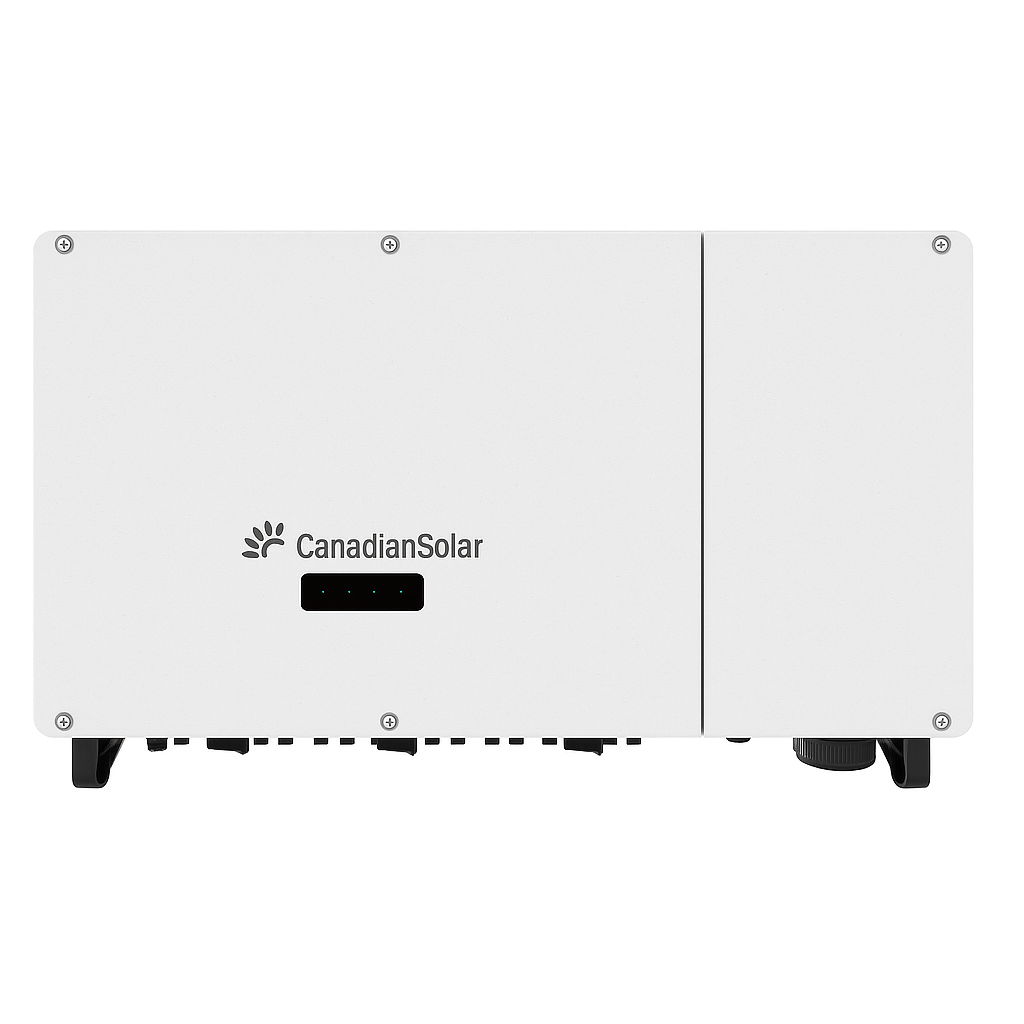

CanadianSolar 120KW Three-Phase On-Grid Solar Inverter | 6 MPPT | IP66 | CSI-120KT4001A-E-

CanadianSolar 120KW Three-Phase On-Grid Solar Inverter | 6 MPPT | IP66 | CSI-120KT4001A-E-

₨1,099,999.00

CanadianSolar 120KW solar inverter price in Pakistan – Available at The Xpert Services, Lahore.

  • Model: CanadianSolar 120KW Three-Phase On-Grid Solar Inverter | 6 MPPT | IP66 | CSI-120KT4001A-E-
  • Hybrid / On-Grid / Off-Grid options available
  • Built-in MPPT solar charge controller
  • Wi-Fi monitoring & remote control support
  • Warranty & technical support included
⚠️ Price Notice: Prices are updated on a daily basis due to market fluctuations. Please confirm the final price before placing your order. Call or WhatsApp us for the latest price.
SKU: TXP-AR-002697 Category:

Description

The CSI Solar Grid-Tied Transformerless String Inverter is designed to deliver high efficiency, reliability, and scalability for industrial and commercial rooftop applications. Featuring advanced three-phase string architecture, this inverter helps maximize energy production while reducing installation complexity and costs.

Built for performance and long-term durability, it supports seamless integration with modern PV systems, ensuring optimal energy conversion and grid stability. Perfect for large-scale rooftop solar setups, CSI Solar inverters accelerate the transition to cleaner, more sustainable power solutions.

Key Highlights:

  • Grid-tied, transformerless string inverter for high-efficiency performance

  • Supports advanced three-phase string architecture

  • Ideal for industrial and commercial rooftop solar systems

  • Designed for long-term reliability and easy installation

  • Boosts system efficiency while reducing operational costs

Specification Details
Model CSI-120KT4001A-E
Number of DC Inputs 12
Number of MPPTs 6
Max. Input Current (per MPPT) 6 × 40 A
Max. Short Circuit Current (per MPPT) 6 × 50 A
Max. AC Output Power 120 kW
Rated AC Output Power 120 kVA
Rated Output Current 182.3 A
Weight 90 kg
Max. DC Voltage 1100 VDC
Start-up Voltage 195 VDC
Nominal DC Voltage 600 VDC
MPPT Voltage Range 200 – 1000 VDC
AC Nominal Voltage 380 / 400 VAC
AC Connection Type 3 L / N / PE
AC Frequency 50 / 60 Hz
THD (Total Harmonic Distortion) < 3%
Power Factor Range 0.8 leading … 0.8 lagging
Reactive Power Control Supported
Max. Efficiency 98.5%
CEC Efficiency 98.1%
Protection Level IP66
Cooling Method Intelligent Fan Cooling
Operating Temperature Range -30°C to +60°C
Humidity 0 – 100% Non-condensing
Max. Operating Altitude 4000 m (derating above 3000 m)
Anti-PID Function Yes
AFCI (Arc Fault Circuit Interrupter) Yes
Smart Monitoring Yes
DC Reverse Polarity Protection Yes
Leakage Current Suppression Yes
Integrated DC Switch Yes
Supports Aluminum Cable Yes
Communication Interface RS485 / WiFi
Display LED & App
SPD (Surge Protection Device) DC SPD Type II / AC SPD Type II (Type I Optional)
Installation Type Wall-mounted
AC Output Terminal Type OT Terminals (Supports AC cables up to 240mm²)
Dimensions (W × H × D) 1050 × 687 × 355 mm
Safety / EMC Certification IEC62109-1/2, IEC61000-6-2/3
Grid Code Compliance IEC61727, IEC62116, EN50549-1/2, CEI0-16, CEI0-21, NRS097
